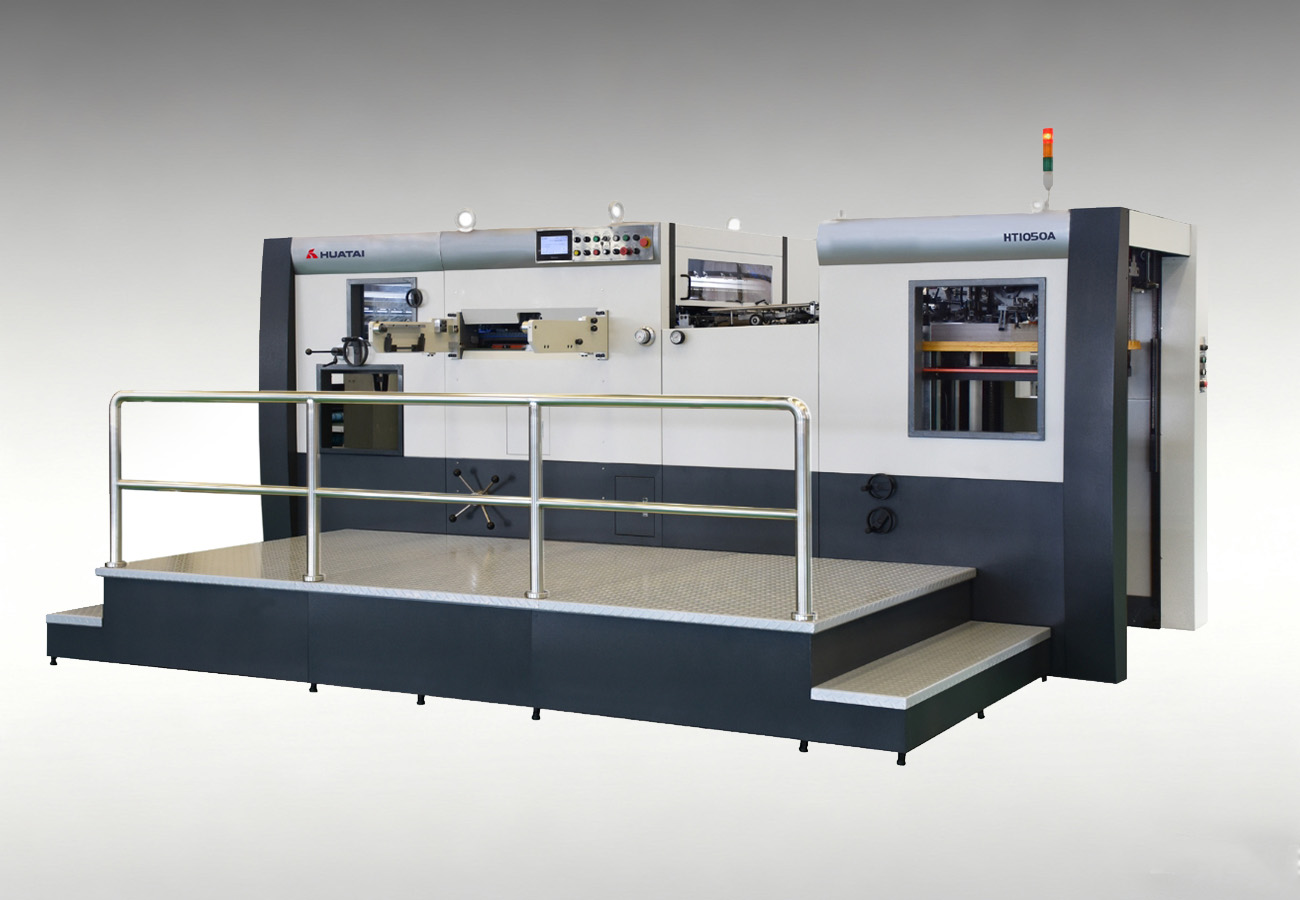

HT1050A /HT1050B/HT1050G Die Cutting Machine
Used for carton box.hand bag.label die cutting and creasing, cold embossing.
Equipped with non stop feeding and non stop delivery device.
Feeding table is adjustable for aligning paper stack.
Pneumatic lock on die cutting chase and air floating device on die cut plate.
German chains ensure accuracy of gripper bars and length of gripper chains are adjustable.
- Suitable for thin paper and plastic
- Heating and anti-static is option
- Specification
| Max.Paper Size | 1050X740mm |
| Min.Paper Size | 400X360mm |
| Max.Cutting Size | 1040X730mm |
| Max.Cutting Speed | 7500s/h |
| Max.Pressure | 300T/500T/300T |
| Die-cutting Precision | ±0.075mm |
| Inside Chase Size | 1050X740mm |
| Height of Cutting Rules | 23.8mm |
| First Cutting Rule | 10mm |
| Min.Gripper Margin | 9mm |
| Max.Feeding Pile Height (incl.pallet) | 1450/1450/1750mm |
| Max.Delivery Pile Height (incl.pallet) | 1300/1300/1600mm |
| Thickness of Cardboard | 80g/㎡~2000g/㎡ |
| Thickness of Corrugated Paper | ≤4mm |
| Weight | 15T/16T/15.5T |
| Total Power | 16w |
| Dimensions | 4620x3765x2005/2005/2305 |
