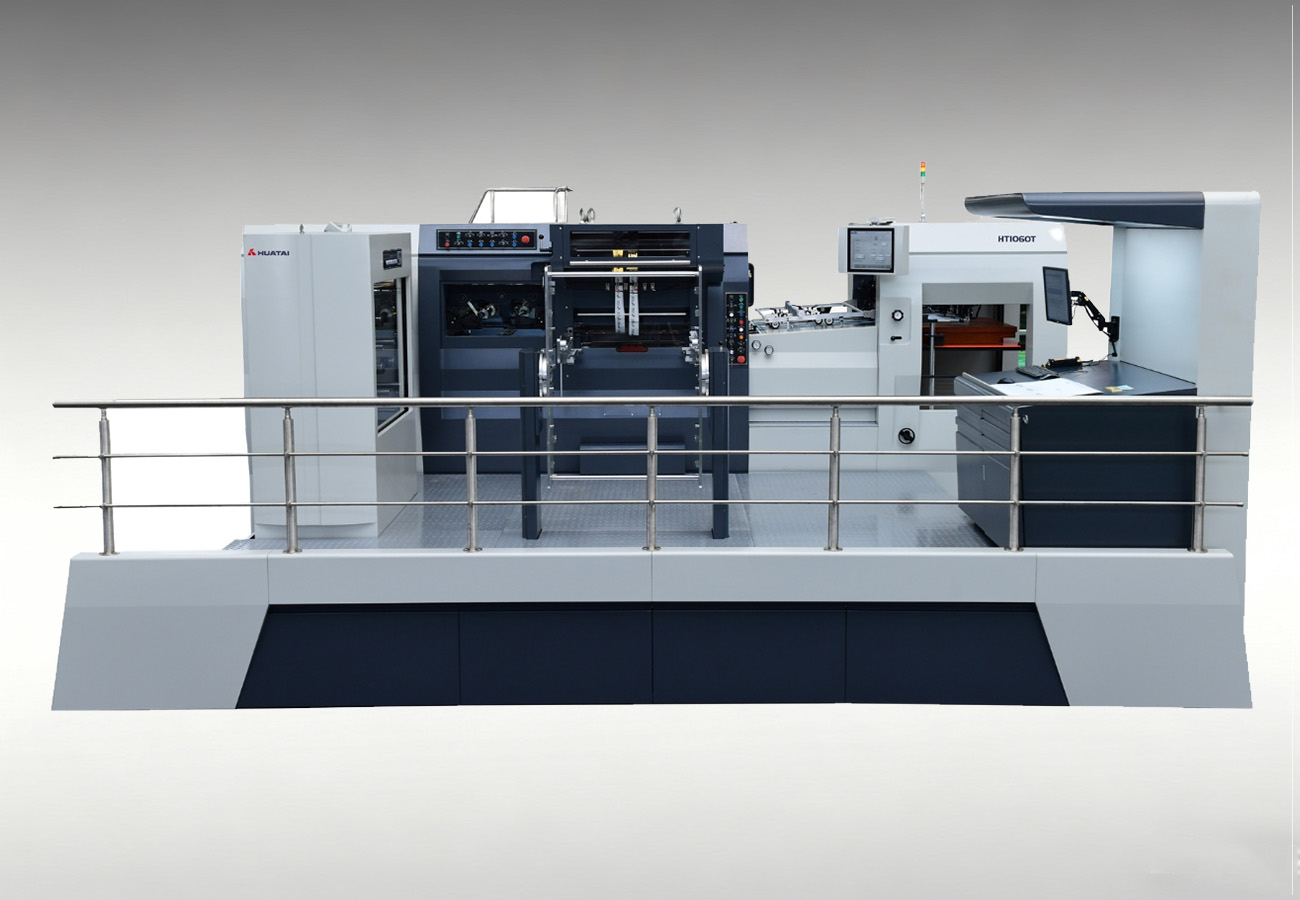

HT1060T Excellent Foil Stamping Machine
Used for carton box, hand bag, label foil stamp, die cut, hot and cold emboss.
Equipped with 3 longitudinal and 2 traversal foil shafts.
Mitsubishi and Panasonic PLC and 9 sets of Yaskawa servo motor from Japan.
Paper slows down when approachs front layer to ensure stamping accurate.
A blowing foil separation device used for large area foil stamping.
- Hologram stamping is option
- Max foil stamping speed 7500s/h

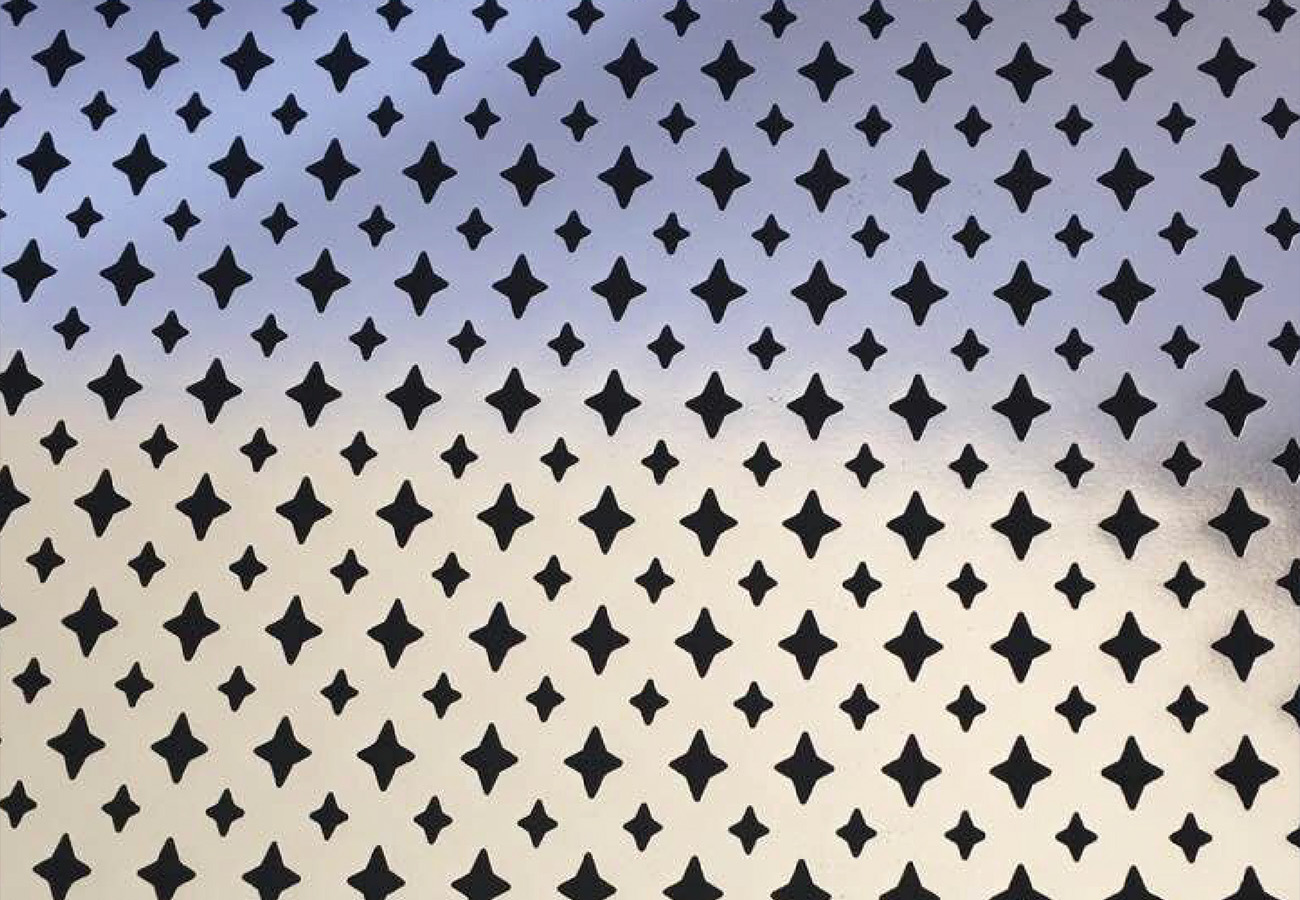

- Large Area Foil Stamp
- Detail Foil Stamp

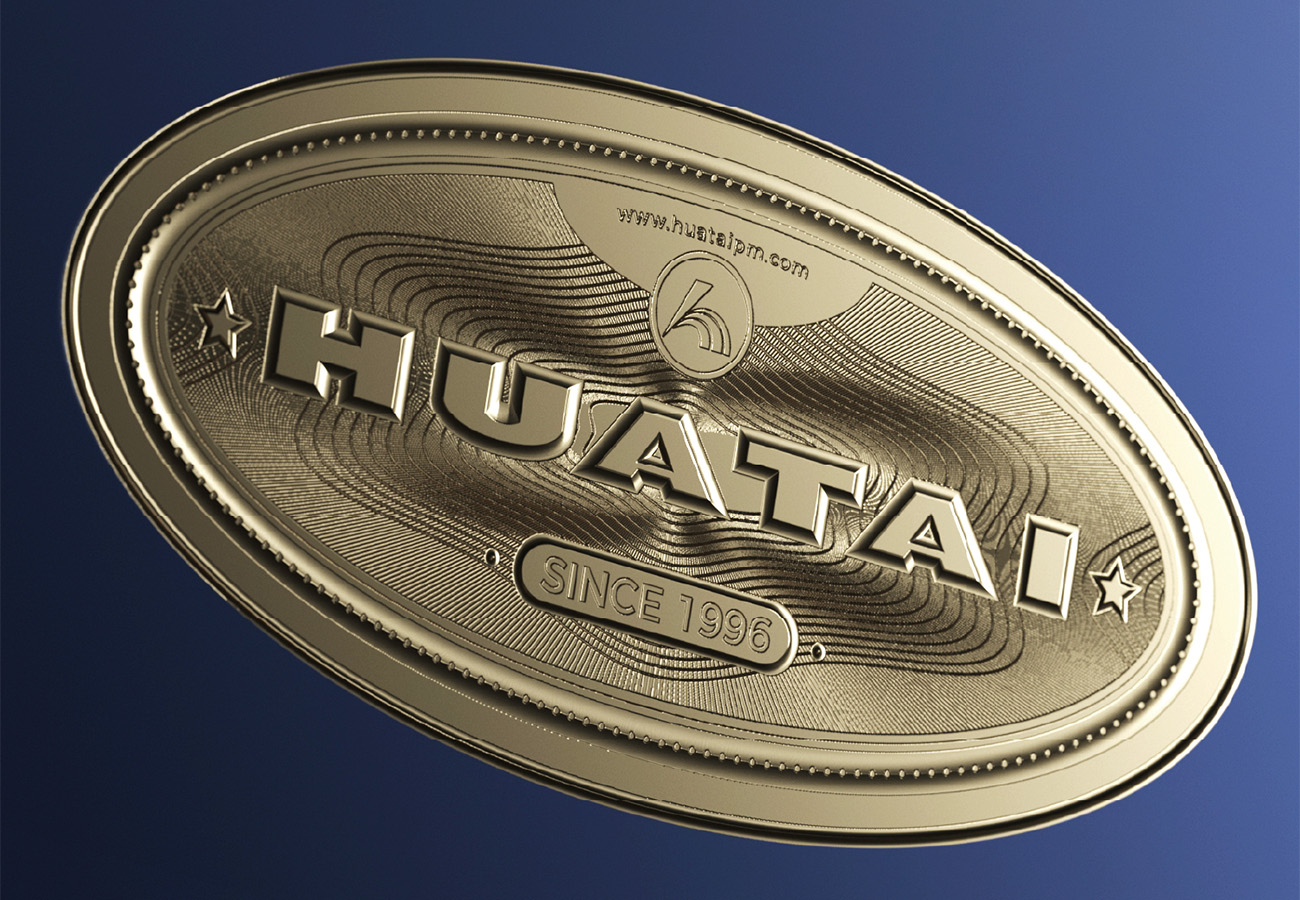

- Embossing Foil Stamp
- Specification
| Max.Paper Size | 1060X740mm |
| Min.Paper Size | 400X360mm |
| Max.Cutting Size | 1040X730mm |
| Max.Foil Stamping Size | 1030X730mm |
| Inside Chase Size | 1050X740mm |
| Height of Cutting Rules | 23.8mm |
| First Cutting Rule | 10mm |
| Min.Gripper Margin | 9mm |
| Max.Foil Stamping Speed | 7500s/h |
| Max.Cutting Speed | 7500s/h |
| Max.Hologram Speed (Option) | 6500s/h |
| Max.Pressure | 300T |
| Die-cutting Precision | ±0.075mm |
| Heating Zone | 16zones |
| Foil stamping and Heating Temperature | 0~190°C |
| Max.Feeding Pile Height (incl.pallet) | 1630mm |
| Max.Delivery Pile Height (incl.pallet) | 1450mm |
| Thickness of Cardboard | 80g/㎡~2000g/㎡ |
| Thickness of Corrugated Paper | ≤4mm |
| Weight | 21T |
| Total Power | 38KW |
| Compressed air | 0.8MPa |
| Air flow | 0.6m³/Min |

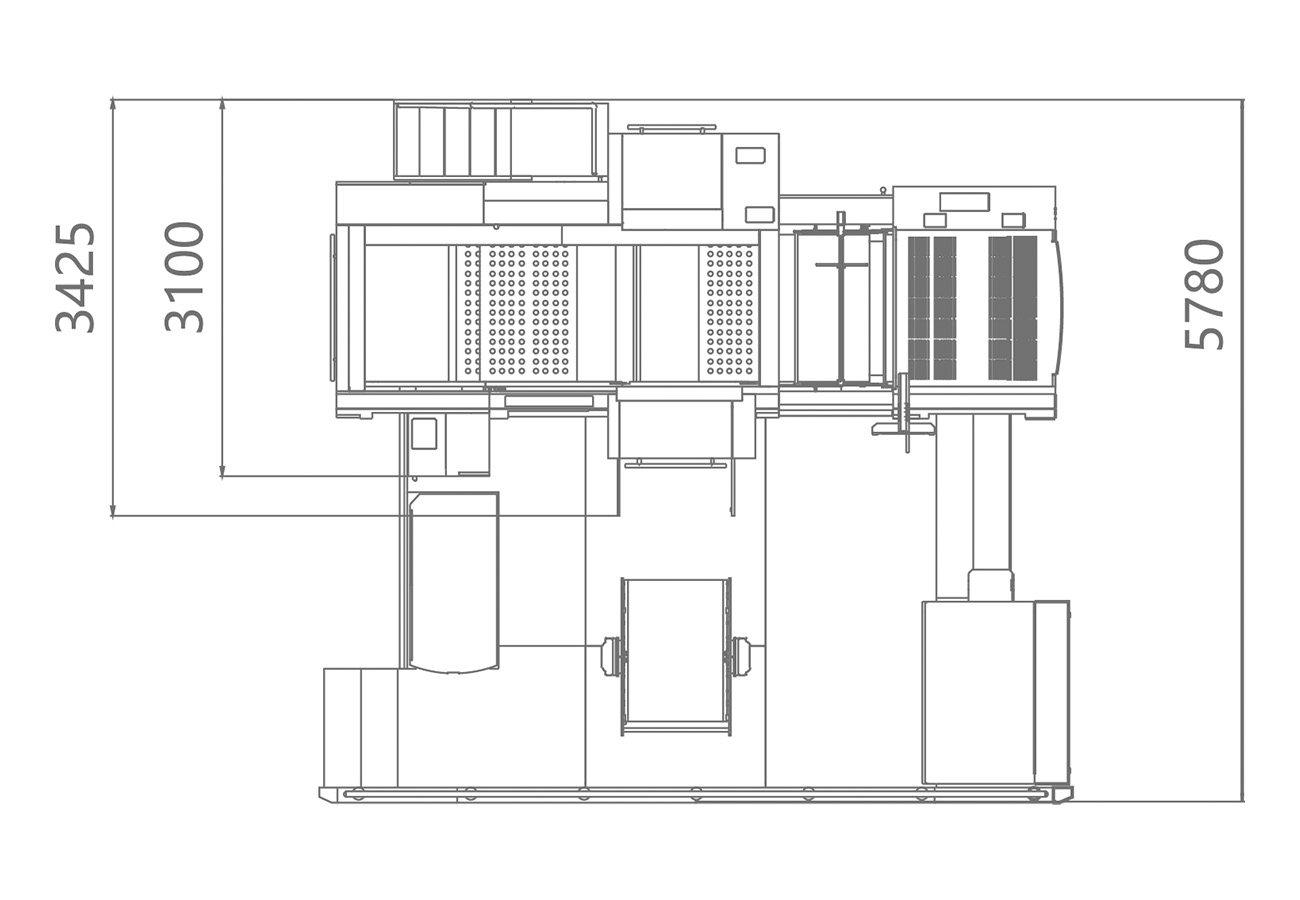

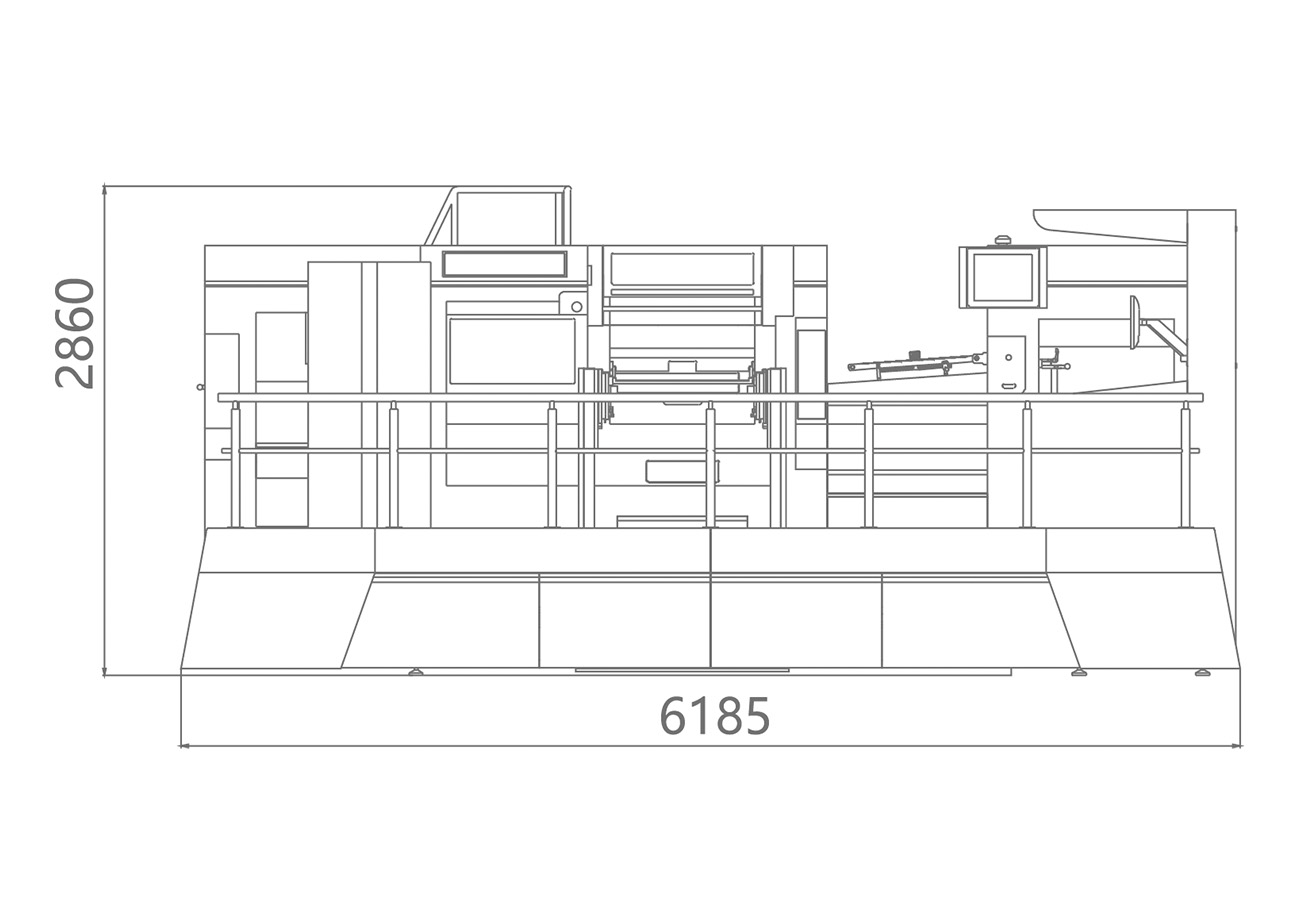

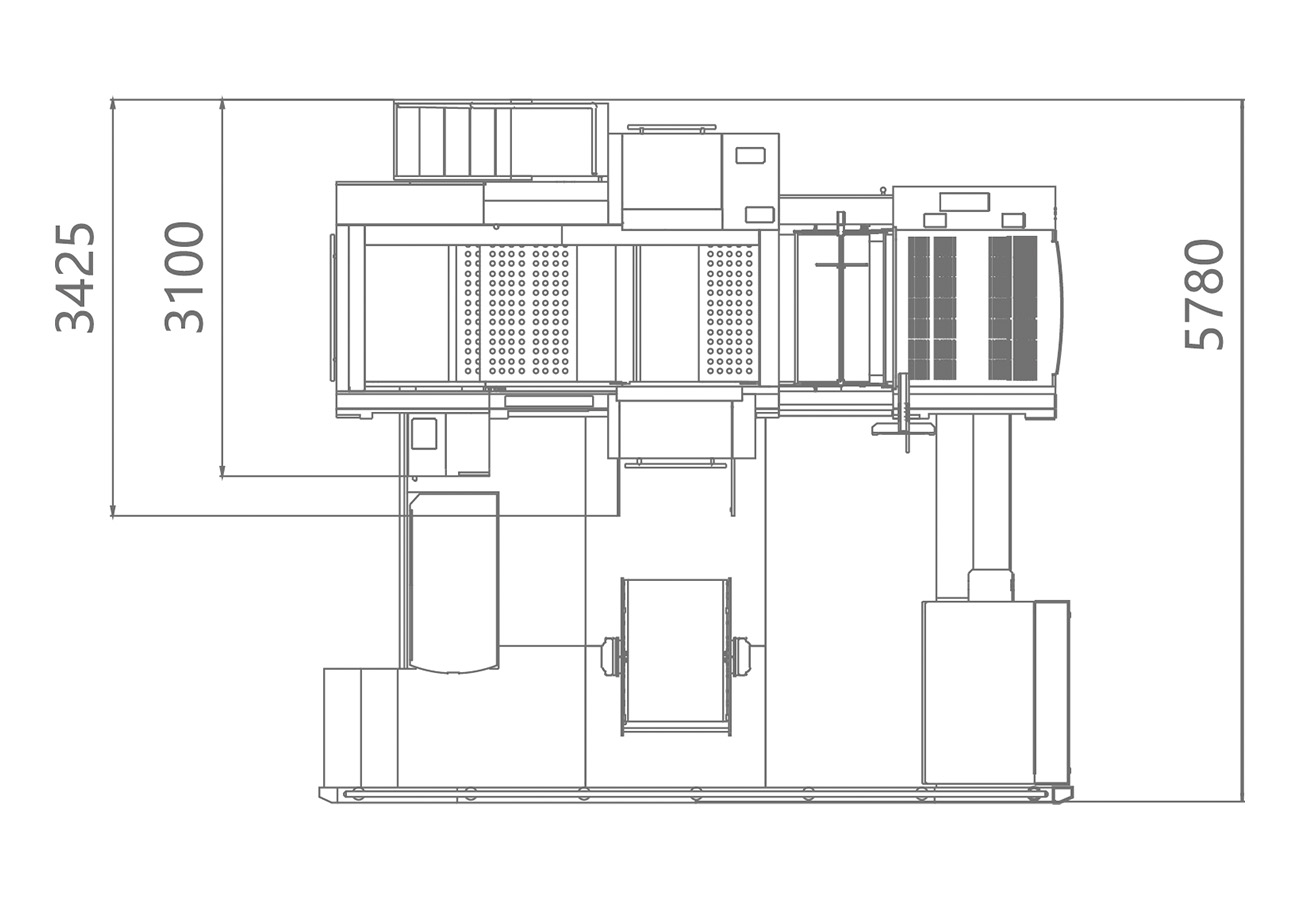

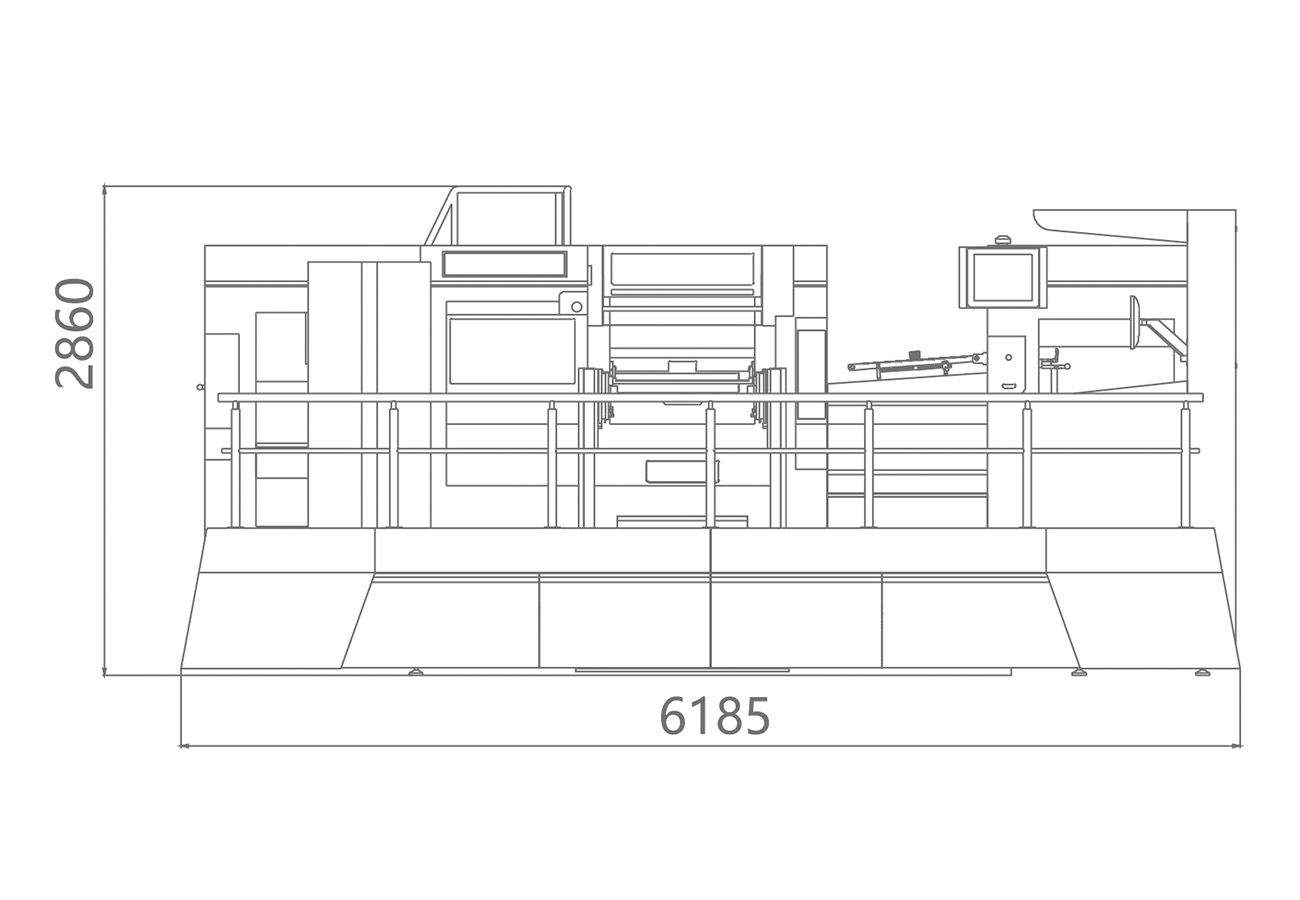

Layout
Gallery
