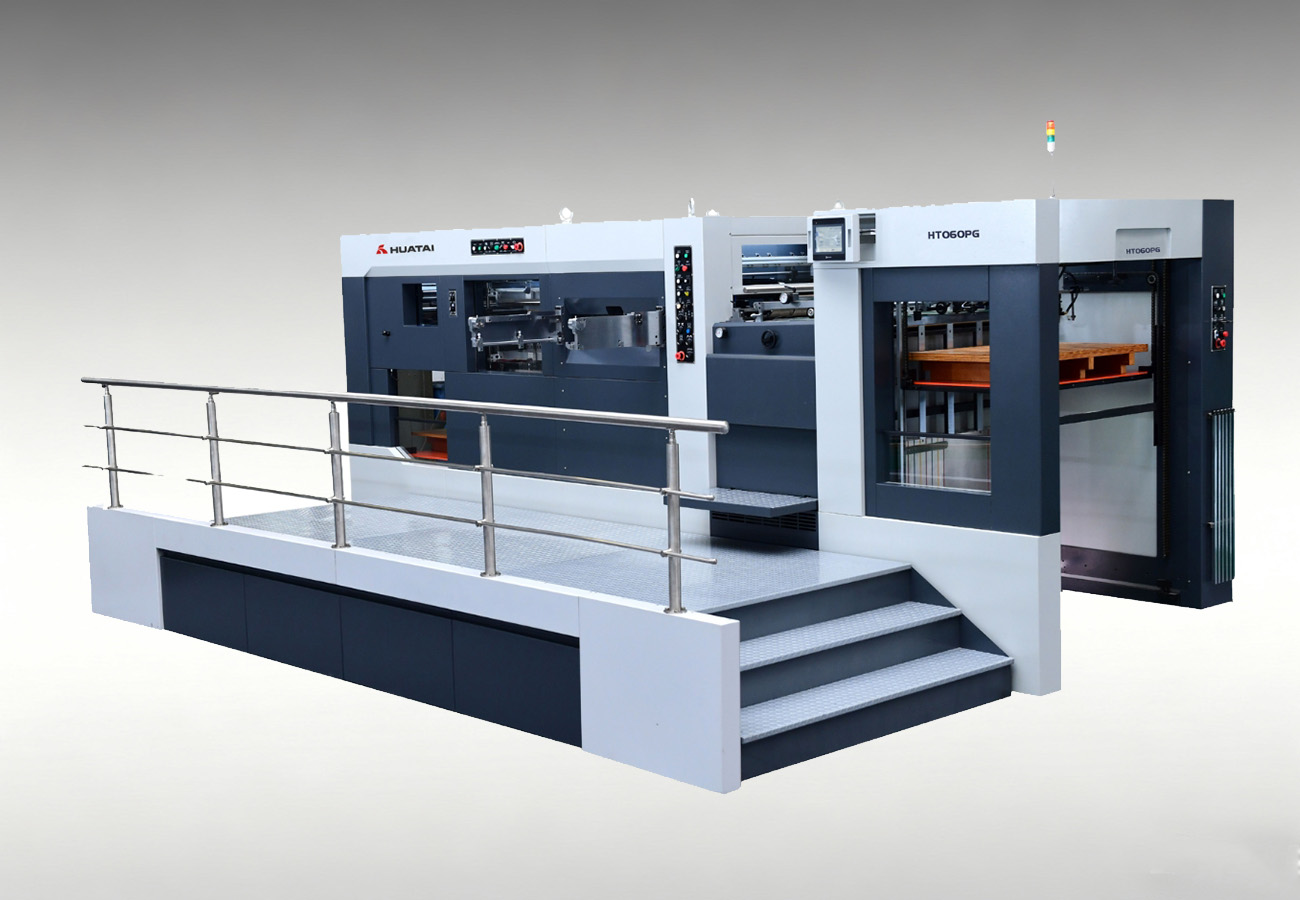

HT1060PG Excellent Die Cutting And Stripping Machine/HT1060G Excellent Die Cutting Machine
This is a high-performance equipment with better performance to meet customers’
requirements for higher product quality and higher productivity.
- Gripper margin removal
- Easy to operate and save time
- High output
- Perfect products quality
- Specification
| Max.Paper Size | 1060X760mm |
| Min.Paper Size | 400X380mm |
| Max.Cutting Size | 1050X750mm |
| Max.Pressure | 350T |
| Die-cutting Precision | ±0.075mm |
| Inside Chase Size | 1070X760mm |
| Die Cutting Plate Size | 1065X760mm |
| Height of Cutting Rules | 23.8mm |
| First Cutting Rule | 8~16mm |
| Min.Gripper Margin | 9mm |
| Max.Feeding Pile Height (incl.pallet) | 1750mm |
| Max.Delivery Pile Height (incl.pallet) | 1600mm |
| Max.Cutting Speed | 9000s/h |
| Max.Die-cutting and Stripping Speed | 8500s/h/- |
| Thickness of Cardboard | 80g/㎡~2000g/㎡ |
| Thickness of Corrugated Paper | ≤4mm |
| Total Power | 20kw/17kw |
| Weight | 20T/18T |
