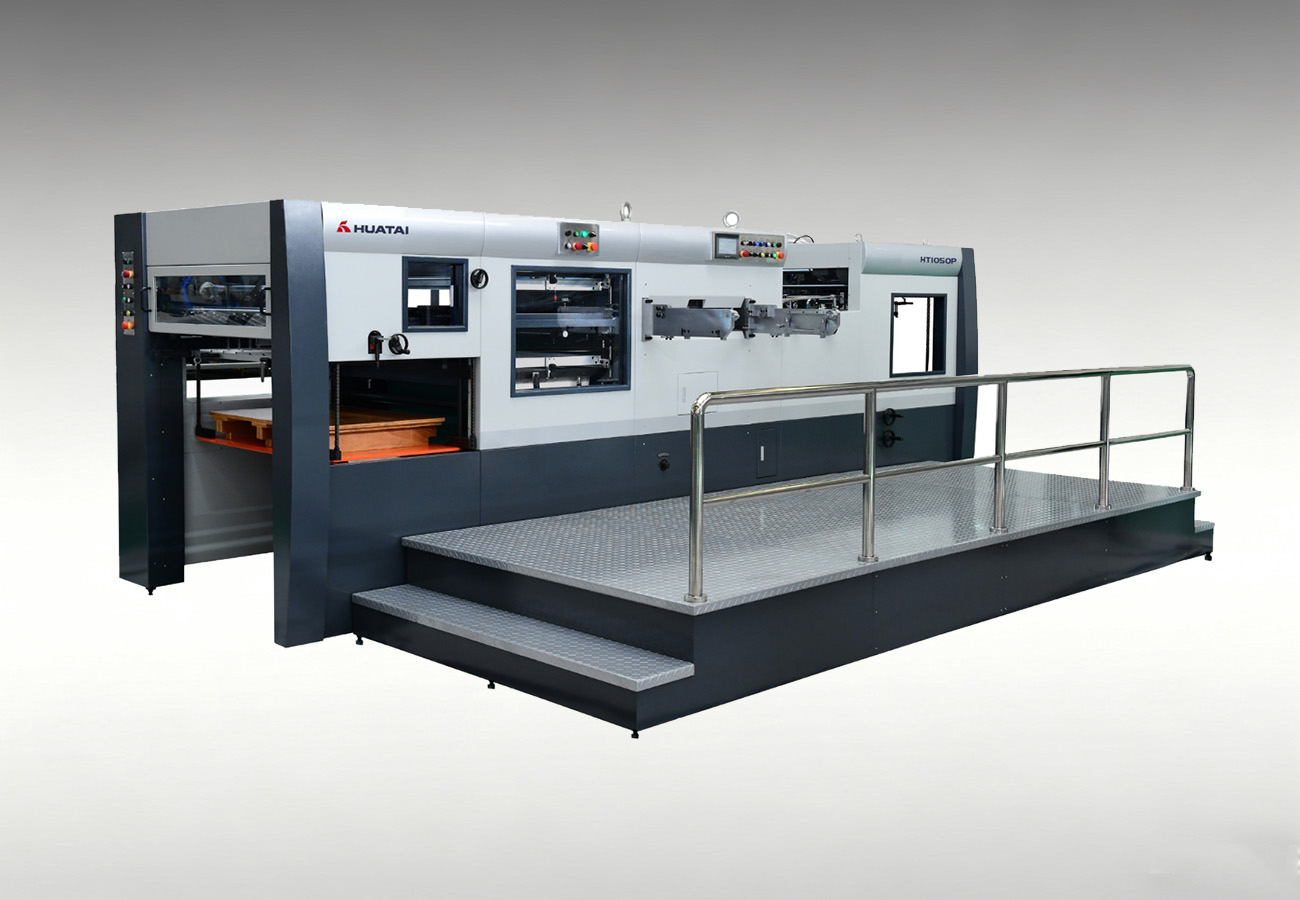

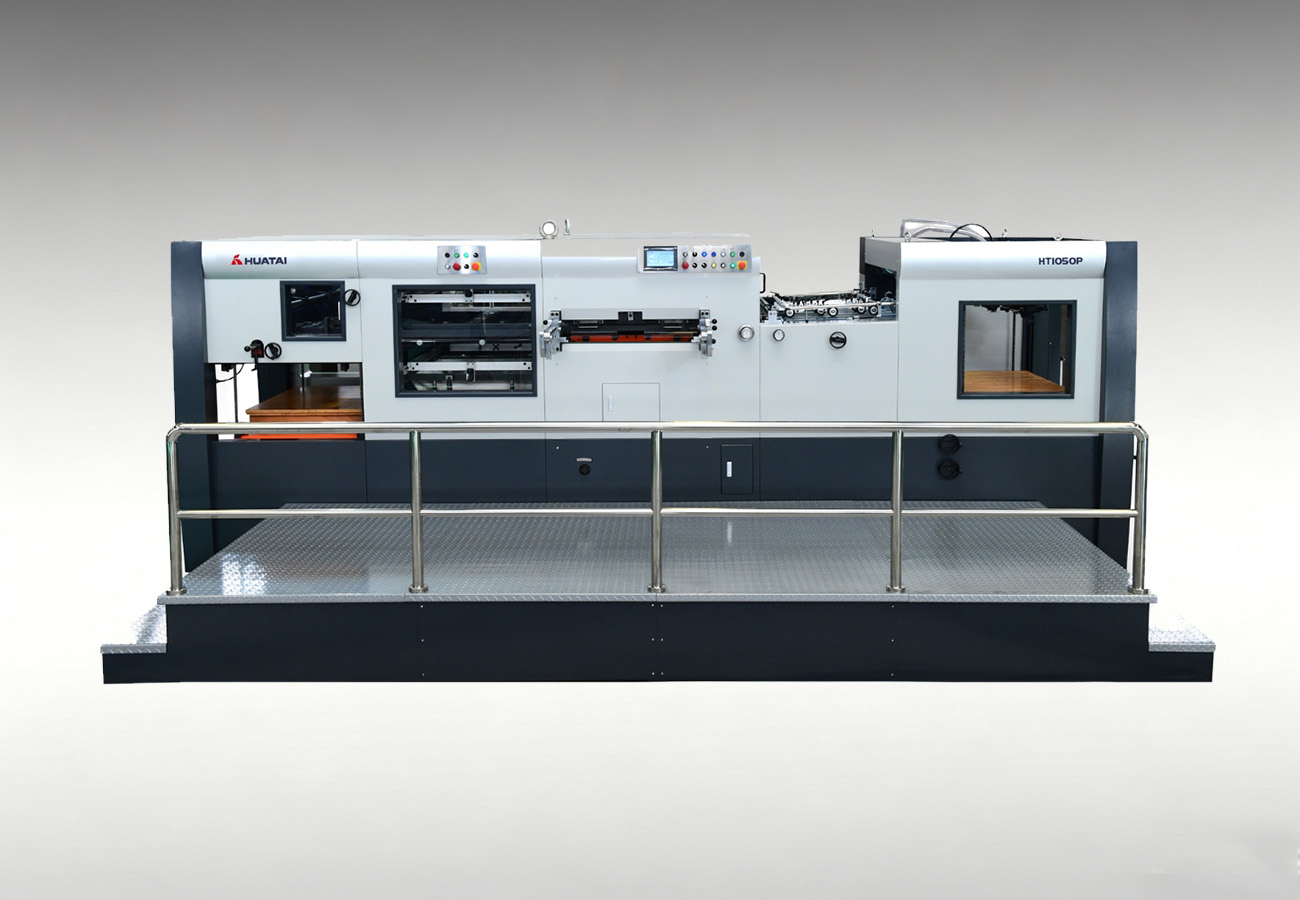

HT1050P Die Cutting Machine Wth Stripping

Used for carton box, hand bag, label die cuttings creasingscold embossing and stripping.

Equipped with feeding and non stop delivery device.

Feeding table is adjustable for aligning paper stack.

Pneumatic lock on die cutting chase and air floating device on die cut plate.

German chains ensure accuracy of gripper bars and length of gripper chains are adjustable.

Smart stripping design leads to quick make readies and job change-over.

Stripping frame can be lifted automatically when not needed.

  • Stable
  • Durable
Max.Paper Size 1050X740mm
Min.Paper Size 400X360mm
Max.Cutting Size 1040X730mm
Max.Pressure 300T
Die-cutting Precision ±0.075mm
Inside Chase Size 1050X740mm
Height of Cutting Rules 23.8mm
First Cutting Rule 10mm
Min.Gripper Margin 9mm
Max.Feeding Pile Height (incl.pallet) 1450mm
Max.Delivery Pile Height (incLpallet) 1300mm
Max.Cutting Speed 8000s/h
Max.Die-cutting and Stripping Speed 8000s/h
Thickness of Cardboard 80g/㎡~2000g/㎡
Thickness of Corrugated Paper ≤4mm
Total Power 16.9kw
Weight 17T
Dimensions 5585X3850X2005mm
