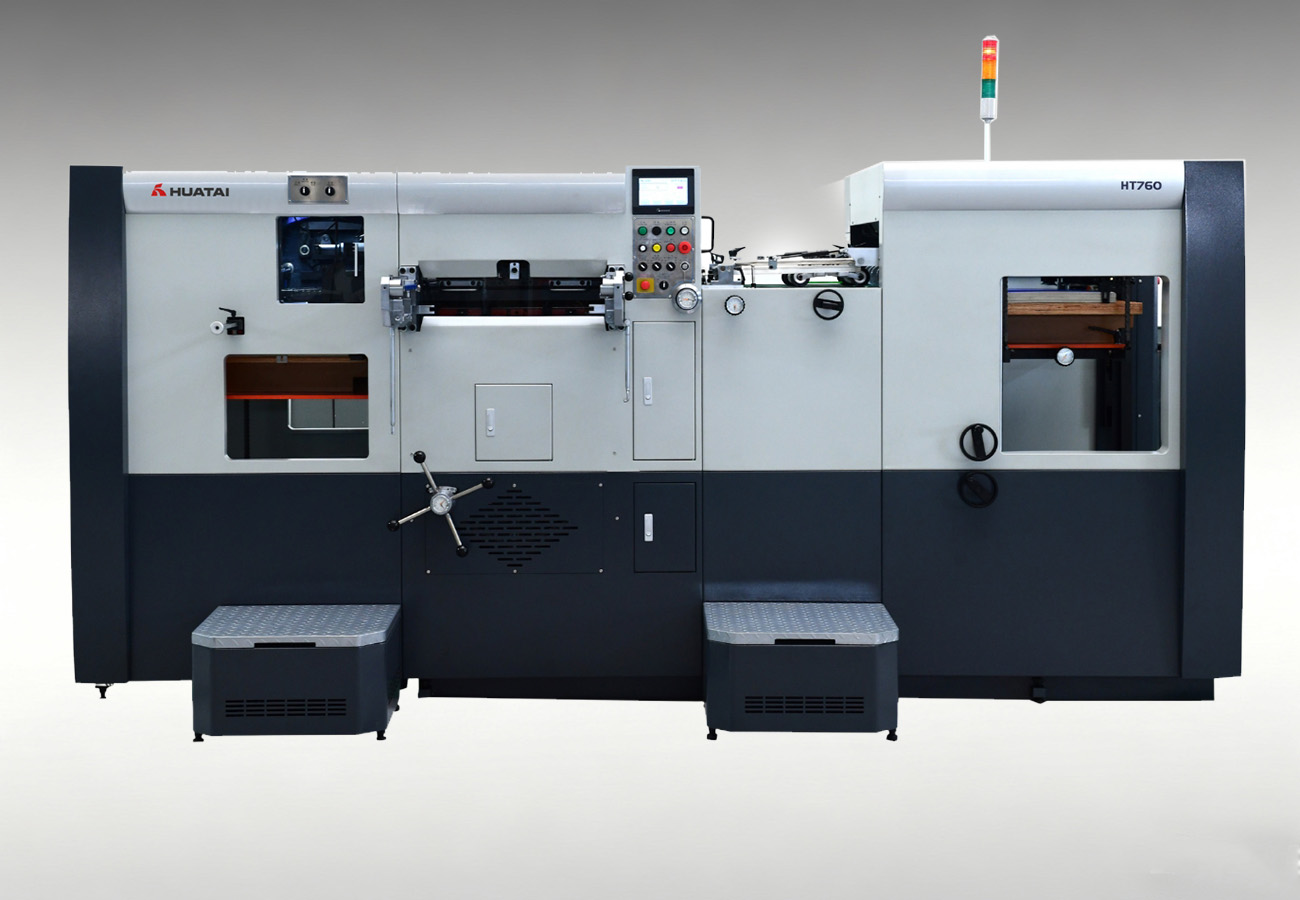

HT760 /HT760B /HT760C High Speed Die Cutting Machine
Used for hangtags, label, carton box, hand bag die cuttings creasing and cold embossing.
Pneumatic lock on die cutting chase and air floating device on die cut plate.
German chains ensure accuracy of gripper bars.
Length of gripper chains can be adjusted.
- Smart
- Simple
- Wide applicability
- Match with B2
- Specification
| Max.Paper Size | 760X520mm |
| Min.Paper Size | 320X260mm |
| Max.Cutting Size | 750X510mm |
| Max.Cutting Speed | 10000s/h |
| Max.Pressure | 250T/270T/300T |
| Die-cutting Precision | ±0.075mm |
| Inside Chase Size | 765X530mm |
| Height of Cutting Rules | 23.8mm |
| First Cutting Rule | 12mm |
| Min.Gripper Margin | 7mm |
| Max.Feeding Pile Height (incl.pallet) | 1280mm |
| Max.Delivery Pile Height (incl.pallet) | 1160mm |
| Thickness of Cardboard | 80g/㎡~2000g/㎡ |
| Thickness of Corrugated Paper | ≤4mm |
| Weight | 8T/9T/10T |
| Total Power | 14kw |
