HT1060CB Excellent Die Cutting Stripping and Blanking Machine
Medicine、Comestic etc boxes die cutting and blanking.This is a high-performance equipment with better performance to meet customers’requirements for higher product quality and higher productivity.
- Pharmaceutical Packaging
- Gripper margin removal
- Easy to operate and save time
- Specification
| Parameter | Value |
| Max.Paper Size | 1060x760mm |
| Min.Paper Size | 400x360mm |
| Max.Cutting Size | 1050x750mm |
| Max.Pressure | 350T |
| Die-cutting Precision | ±0.075mm |
| Inside Chase Size | 1070x760mm |
| Die Cutting Plate Size | 1060x760mm |
| Height of Cutting Rules | 23.8mm |
| First Cutting Rule | 10-16mm |
| Min.Gripper Margin | 9mm |
| Max.Feeding Pile Height (incl.pallet) | 1750mm |
| Max.Delivery Pile Height (incl.pallet) | 1600mm |
| Max.Die-cutting and Blanking Speed | 6000sh/h |
| The Thickness of Corrugated Paper | ≤4mm |
| The Thickness of Cardboard | 80g/m²-2000g/m² |
| Total Power | 23kw |
| Weight | 20T |
| Compressed air | 0.8Mpa |
| Air flow | 0.6m³/Min |
| Voltage | 3AC 380V ±5% 50Hz |

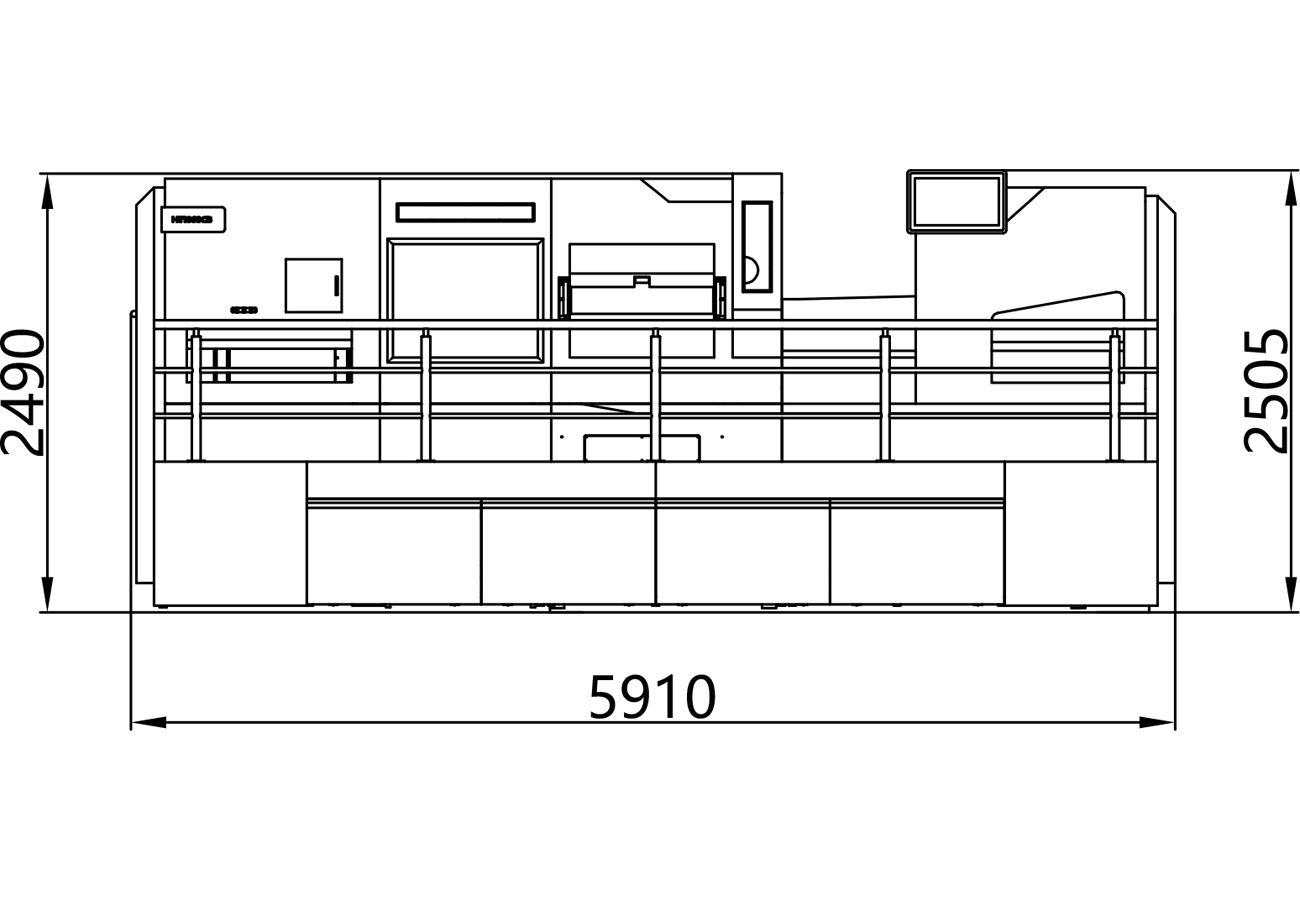

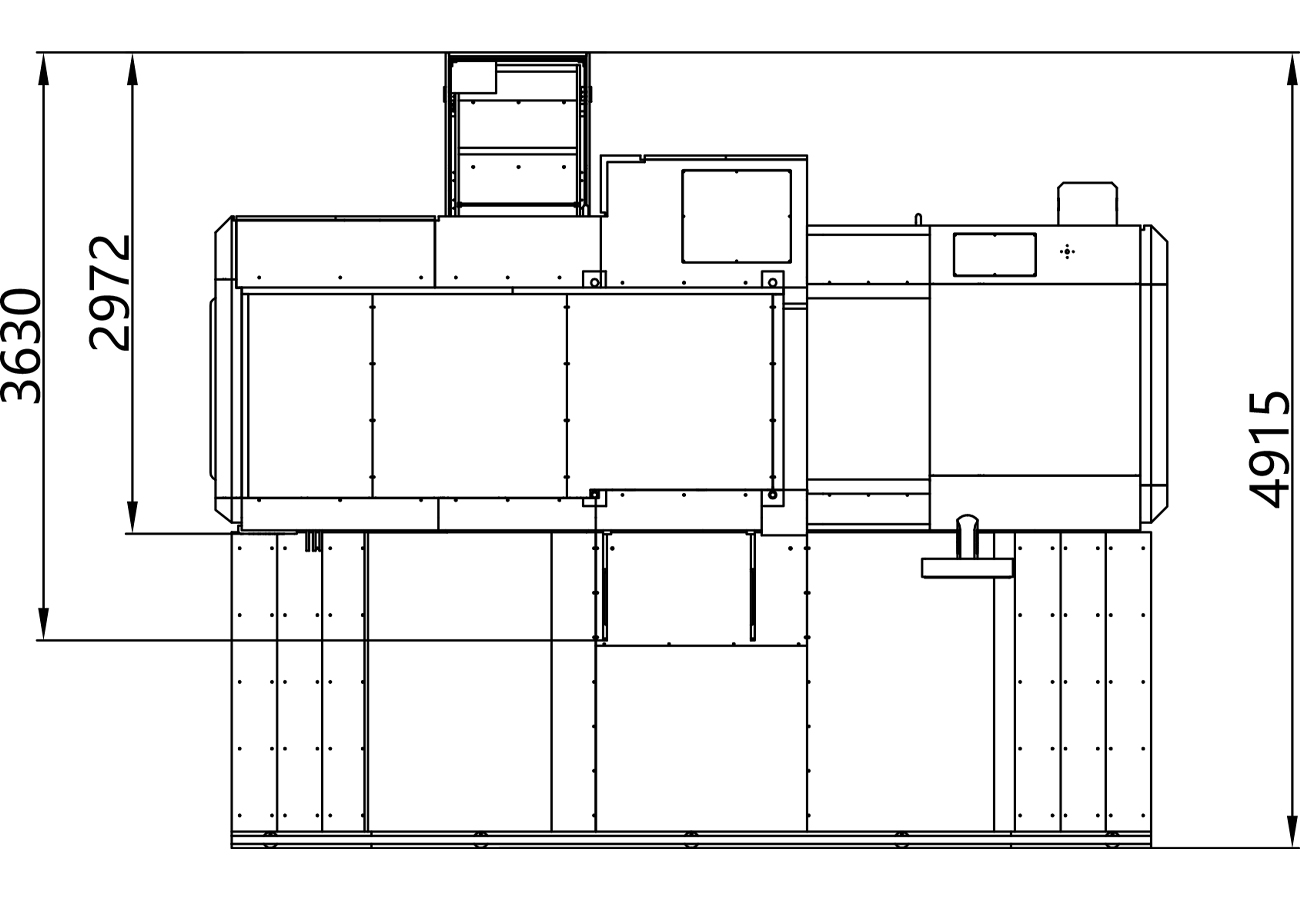

Layout

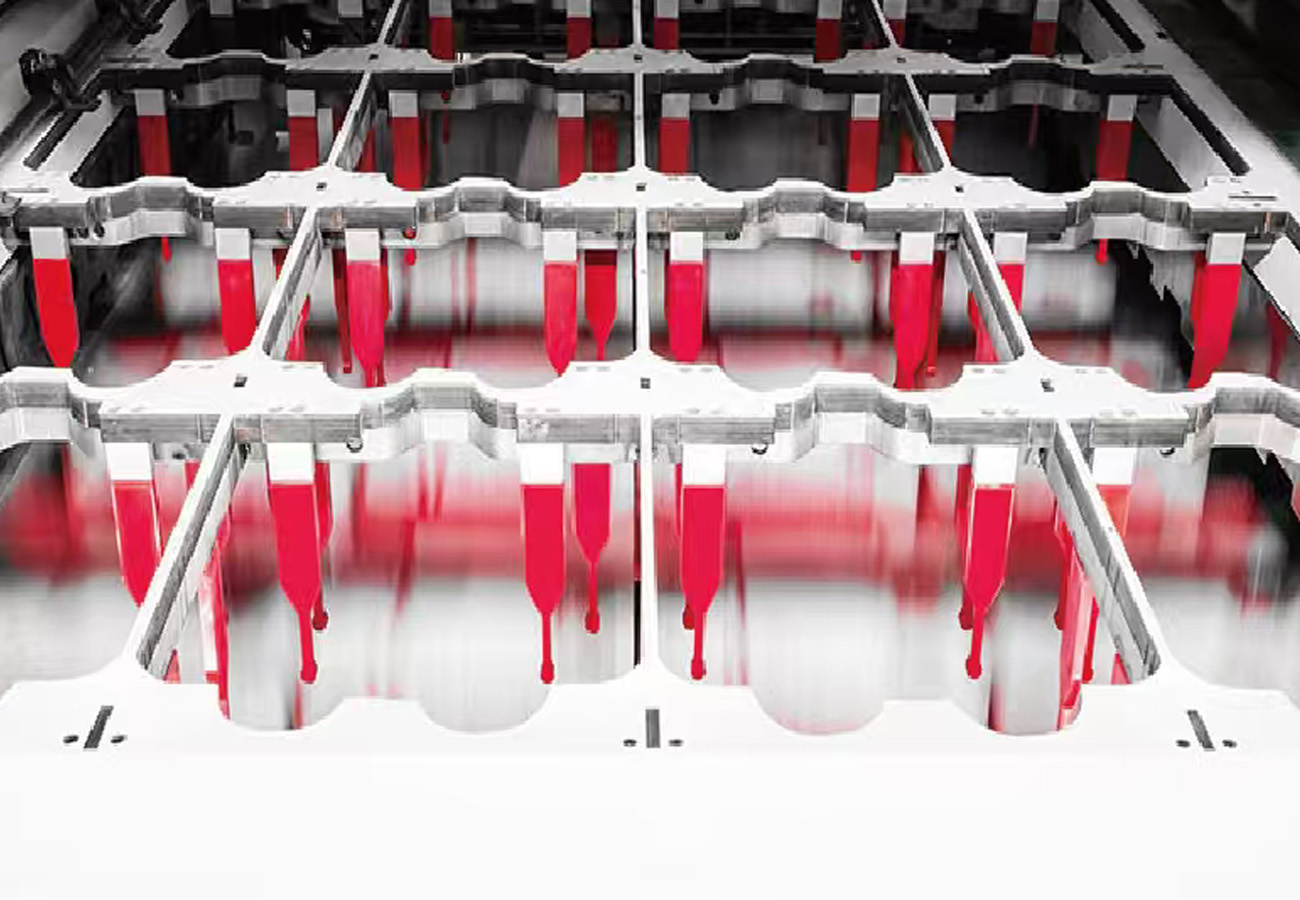

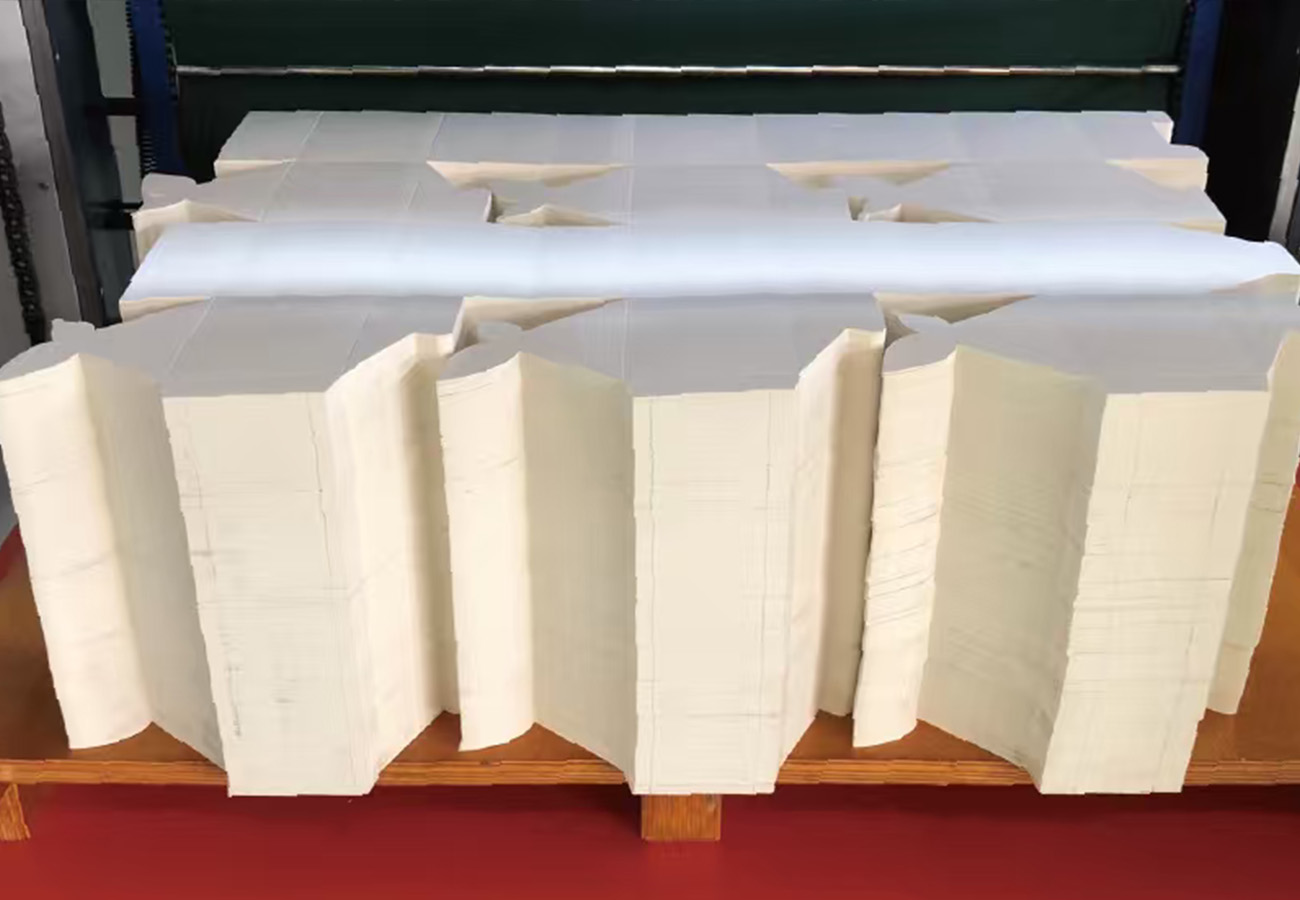

Gallery
