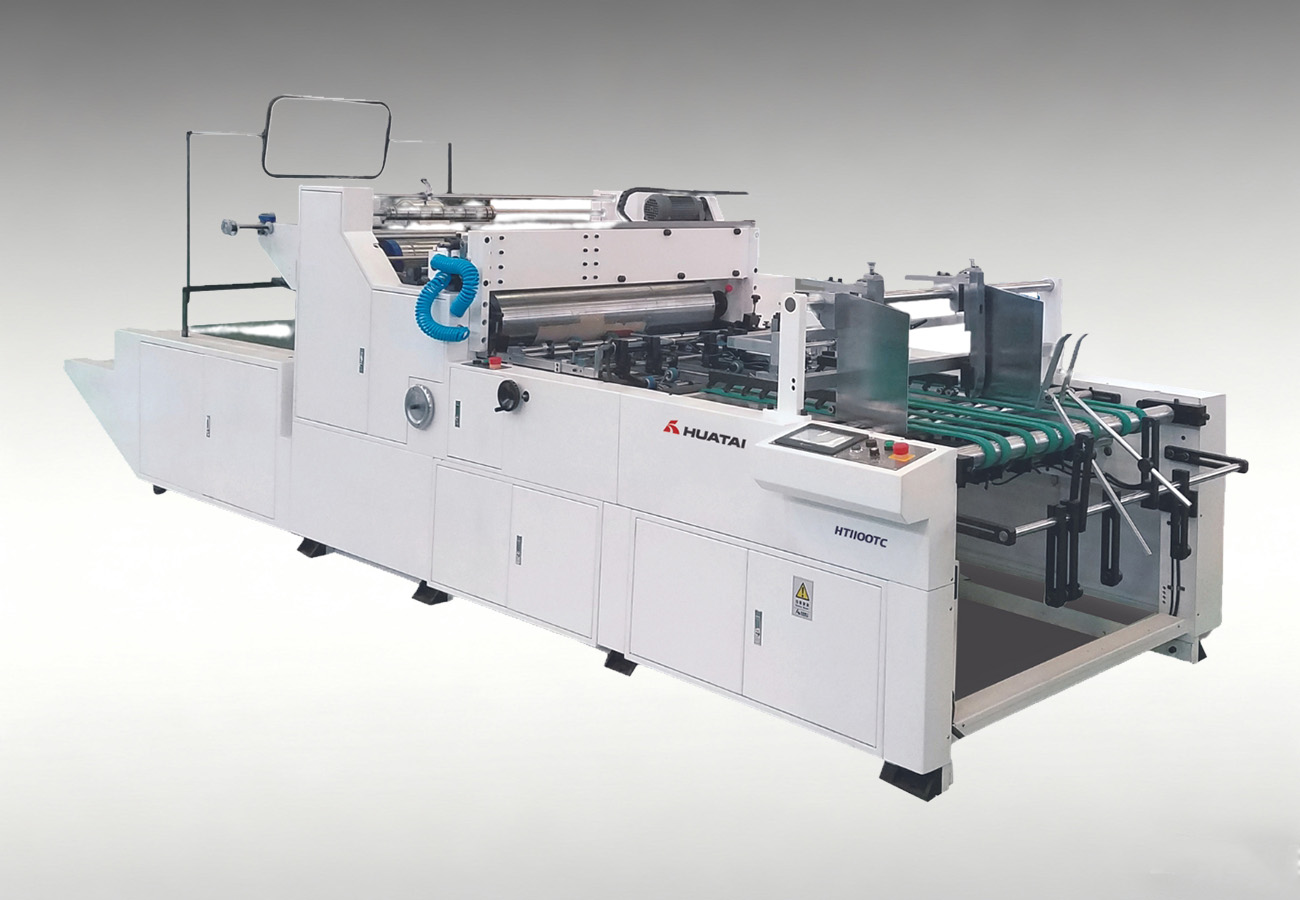

HT1100TC/HT1100TCD High Speed Window Patching Machine (Single/Double lane)

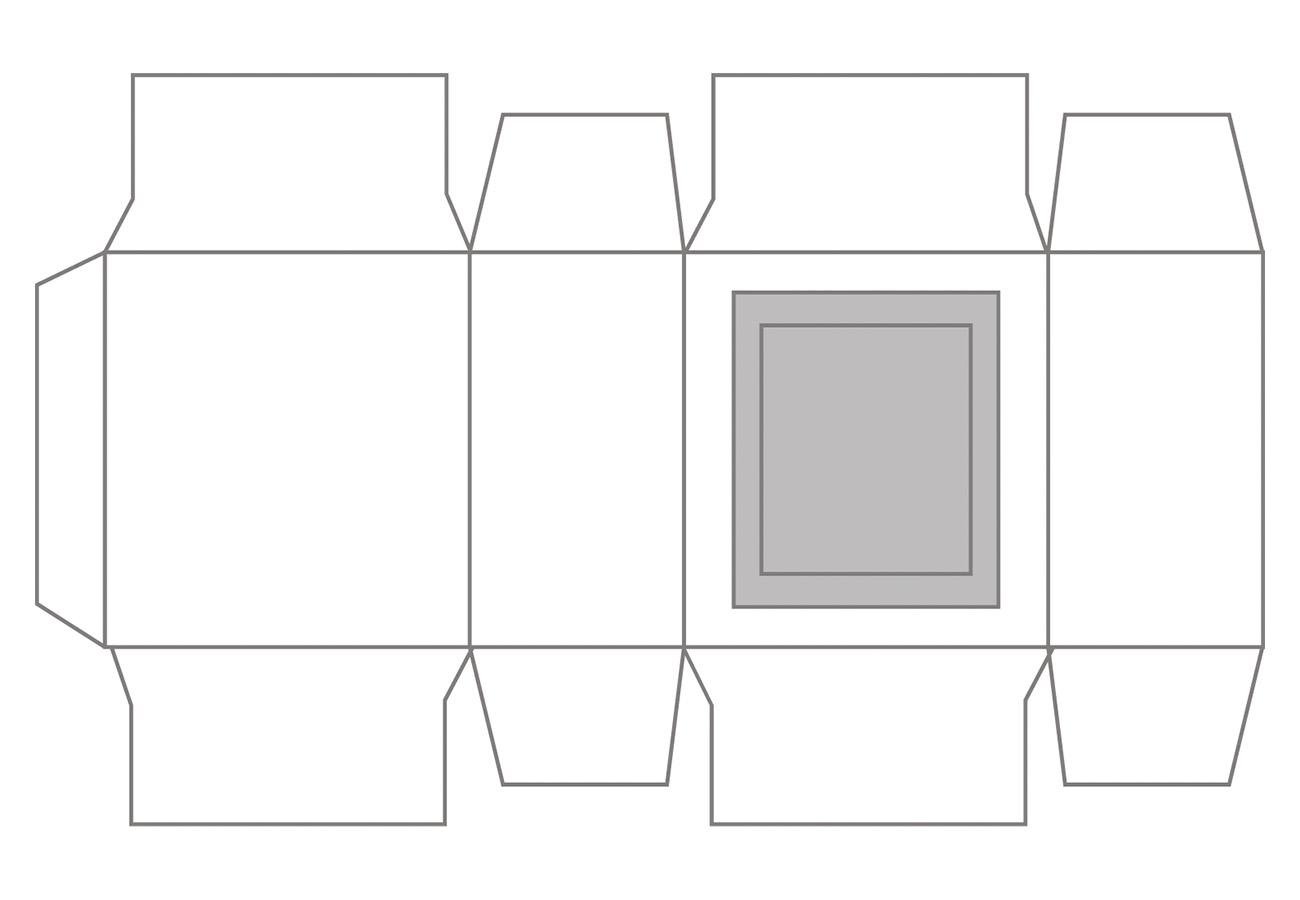

- Used for pasting plastics window on phone, wine, tissue, clothes and milk box.
- Paper and film feeding adopt servo motor to achieve high speed, stability and accuracy.
- Gluing section can be pulled out and easy for setting and cleaning.
- Glue can be adjusted to make the gluing even and economic.
- Knife cylinder inter-crosses with fixed knife bar ensures cut film edge smooth like scissors.
- Equipped with static elimination system.
- Specification
| Max.Paper Size | 1100X650mm |
| Min.Paper Size | 140X140mm |
| Max.Film Size | 410X300mm |
| Min.Film Size | 80X60mm |
| Sheet Thickness | 0.05~0.20mm |
| Positioning accuracy | ±0.5mm |
| Max.working speed | 12000s/h/18000s/h |
| Carboard | 200-500g/㎡ |
| Corrugated Paper | ≤5mm |
| Total Power | 9kw/13kw |
| Total Weight | 3.5T/4T |
| Overall Dimensions | 5400X1805X1750mm |
| When the roller pull out the dimensions | 5400X3160X1750mm |

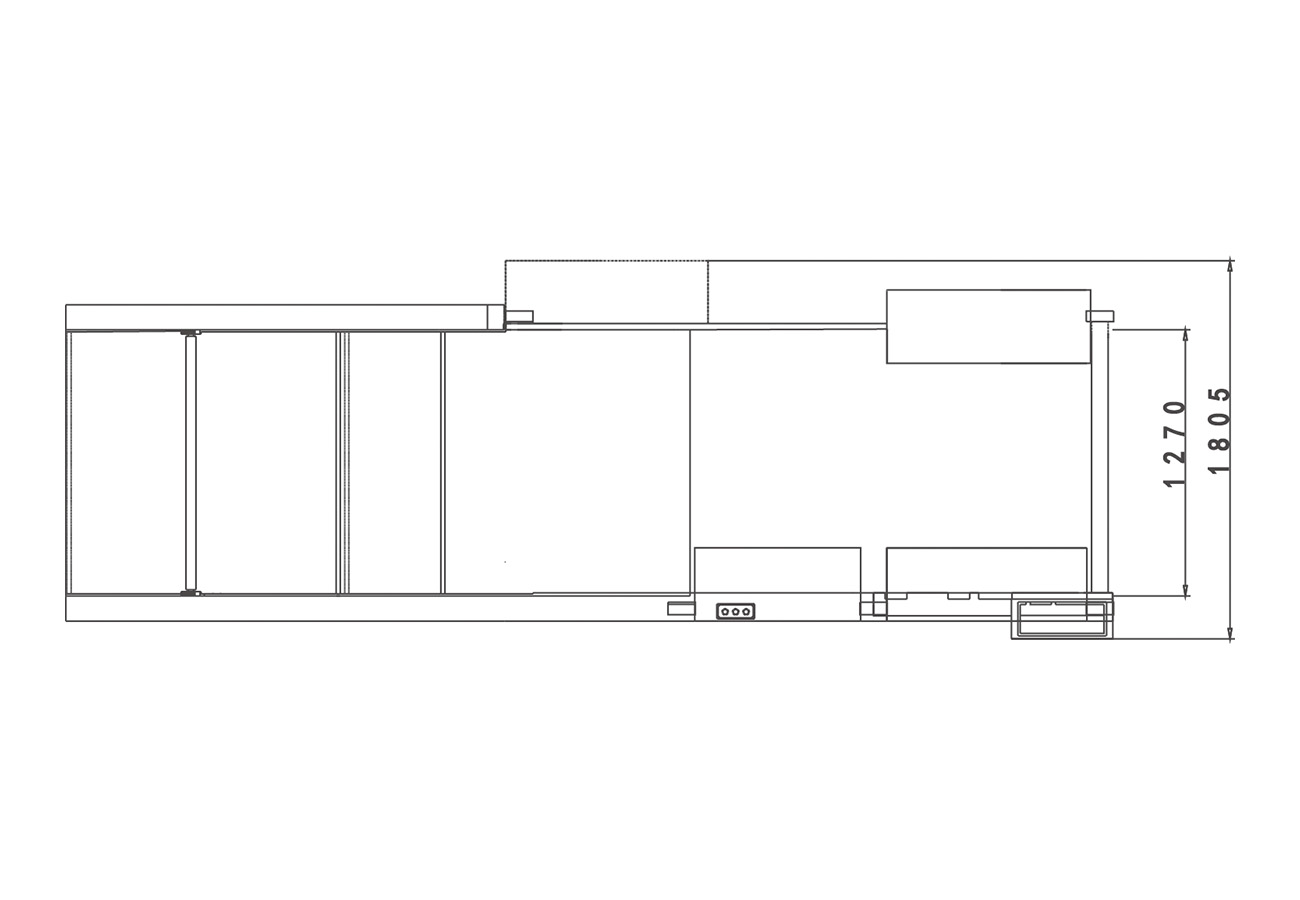

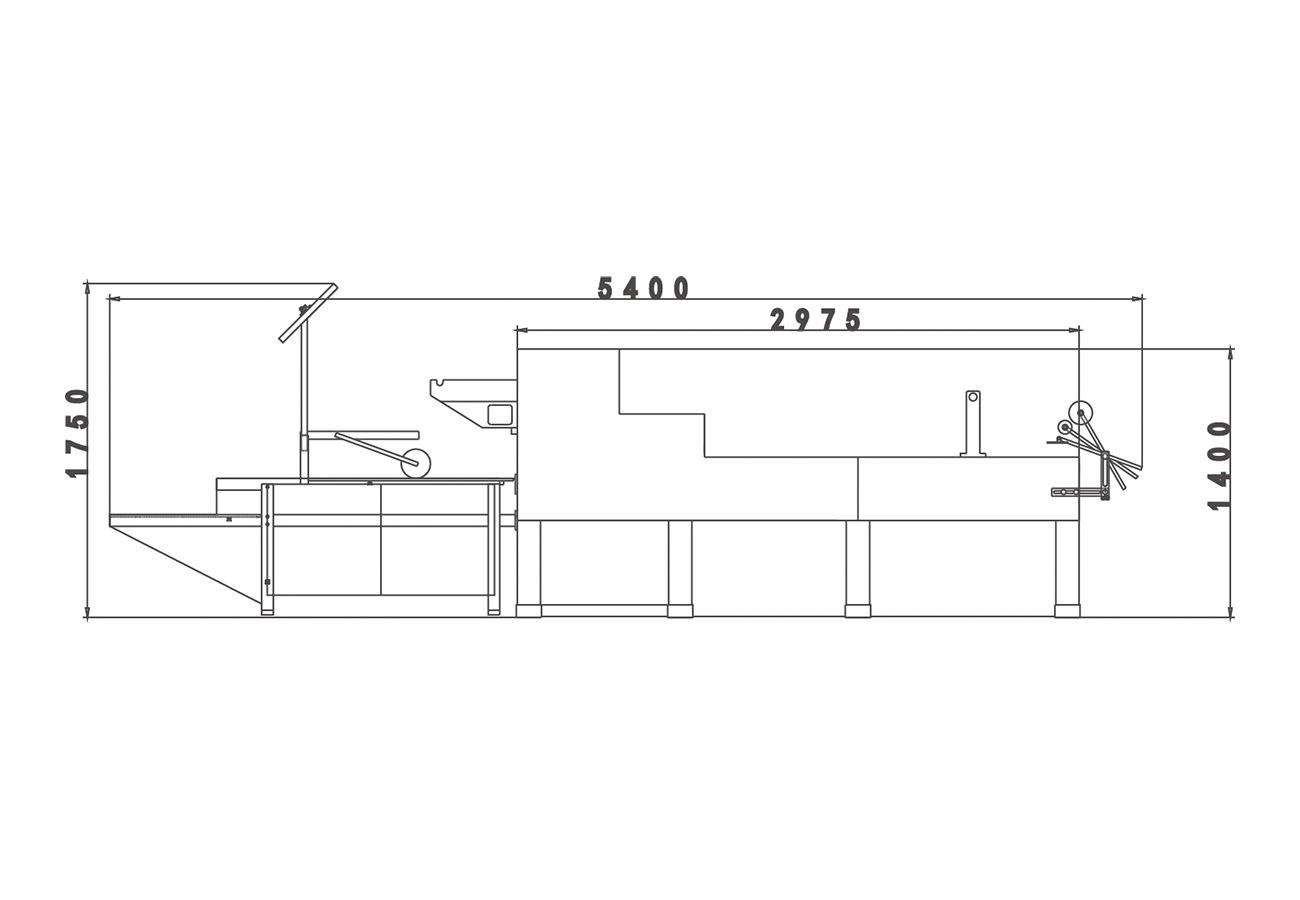

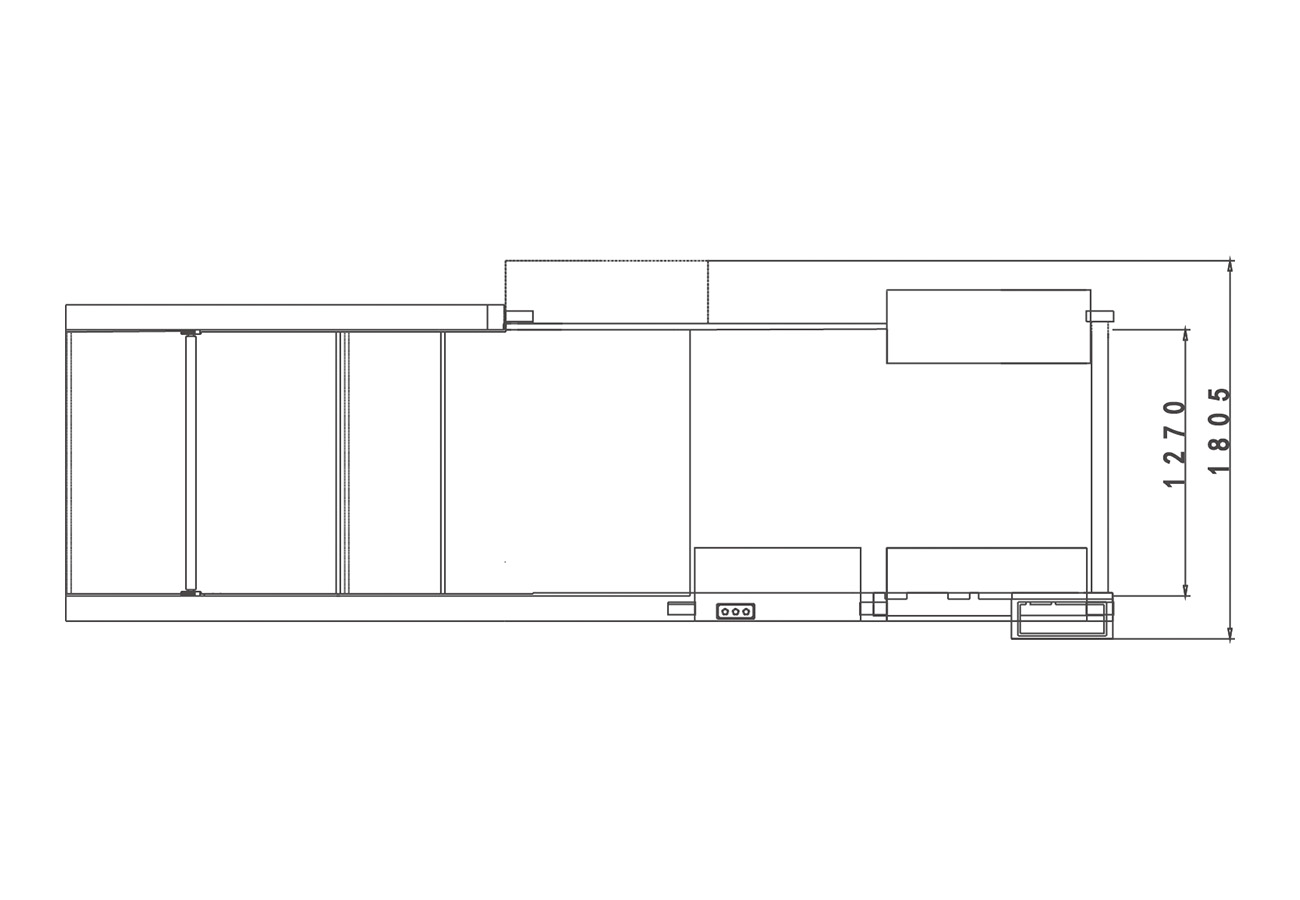

Layout

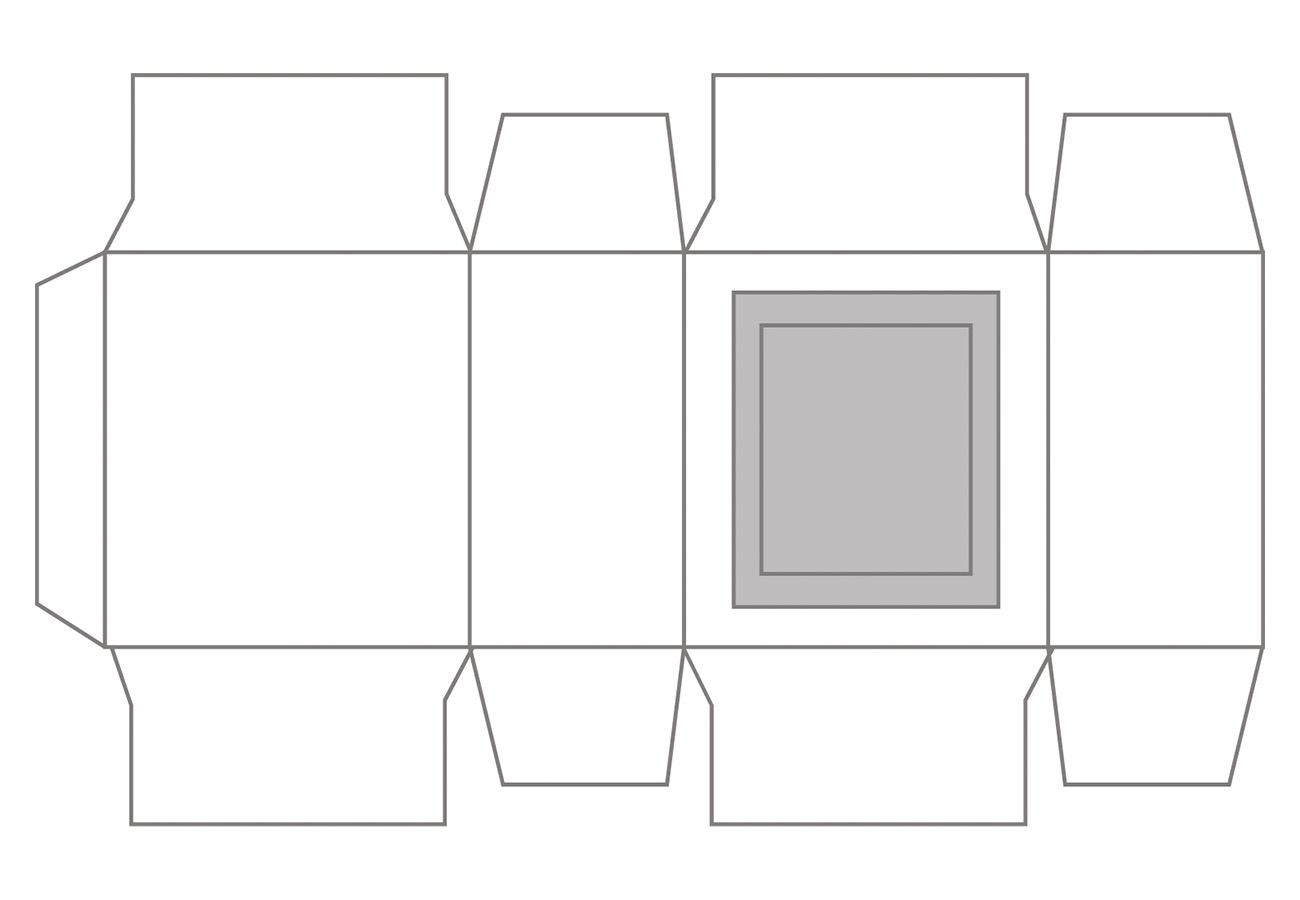

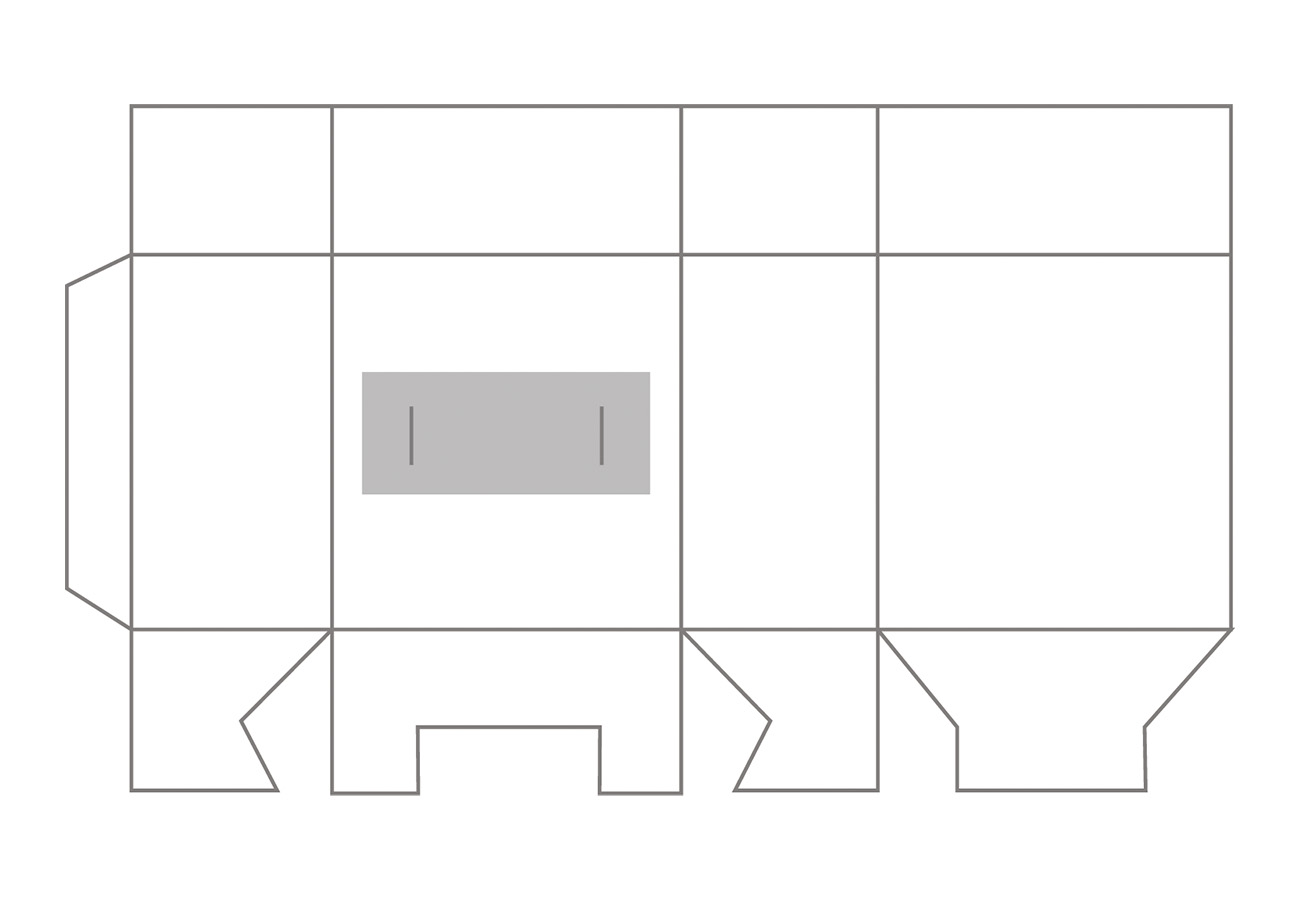

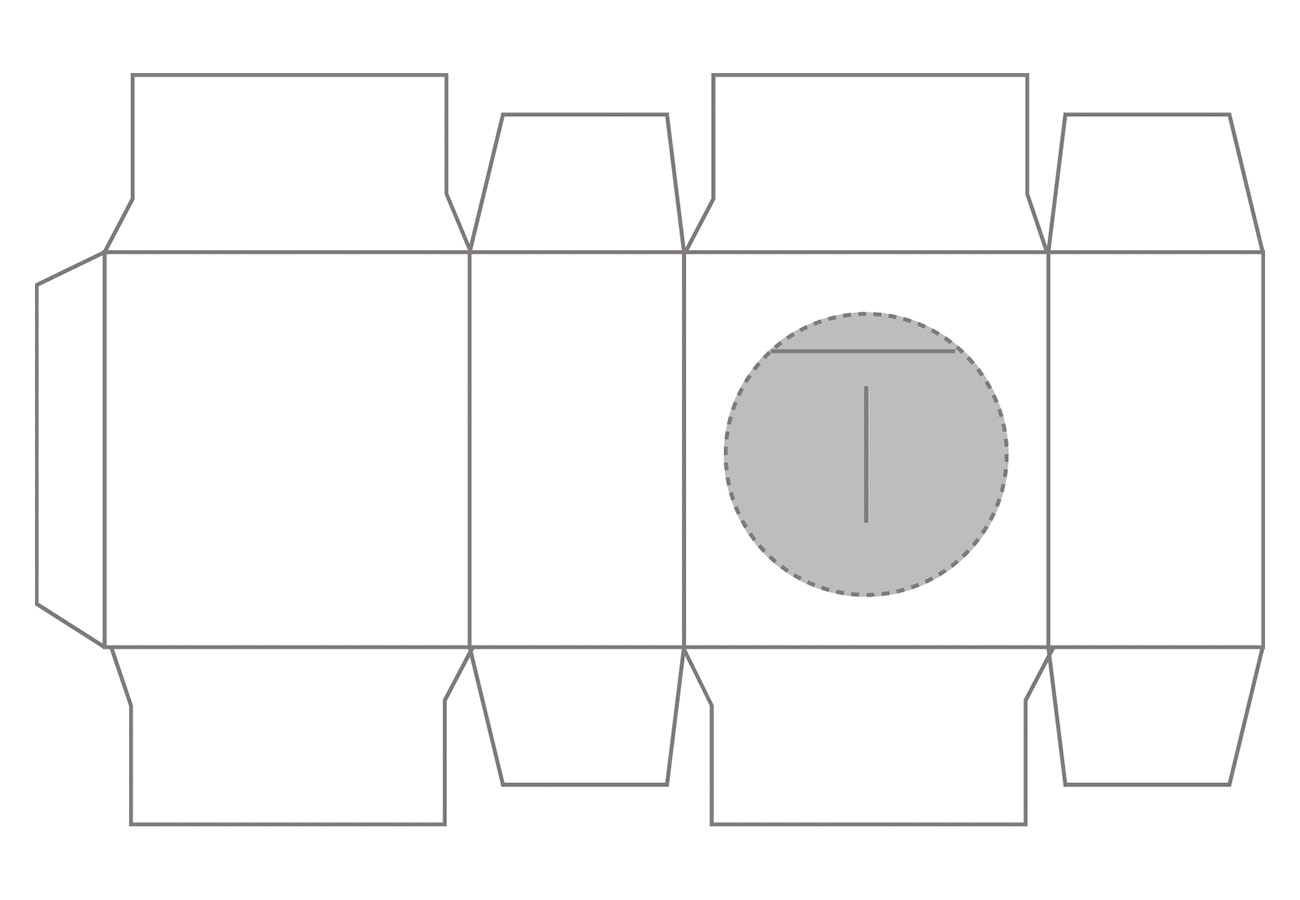

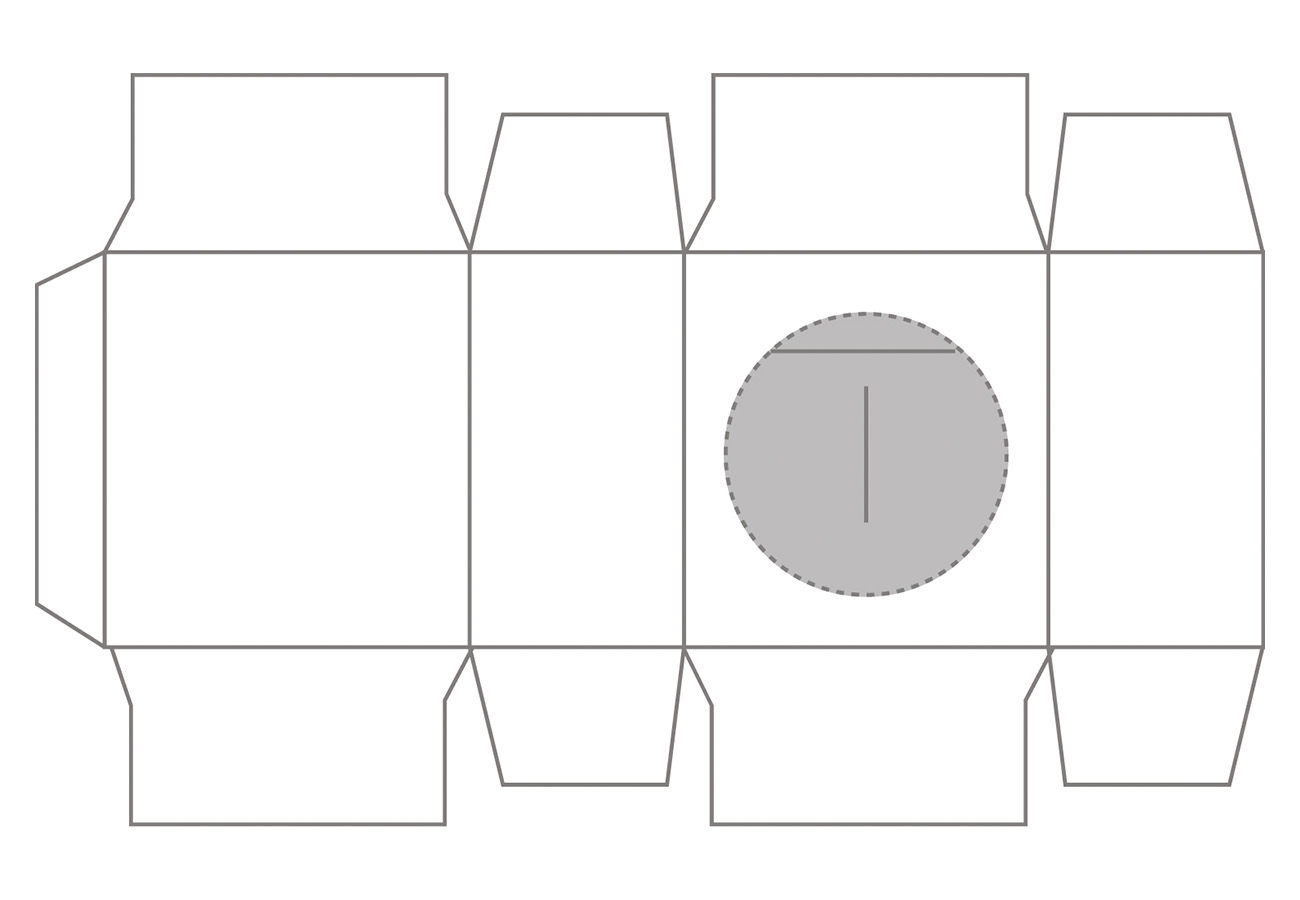

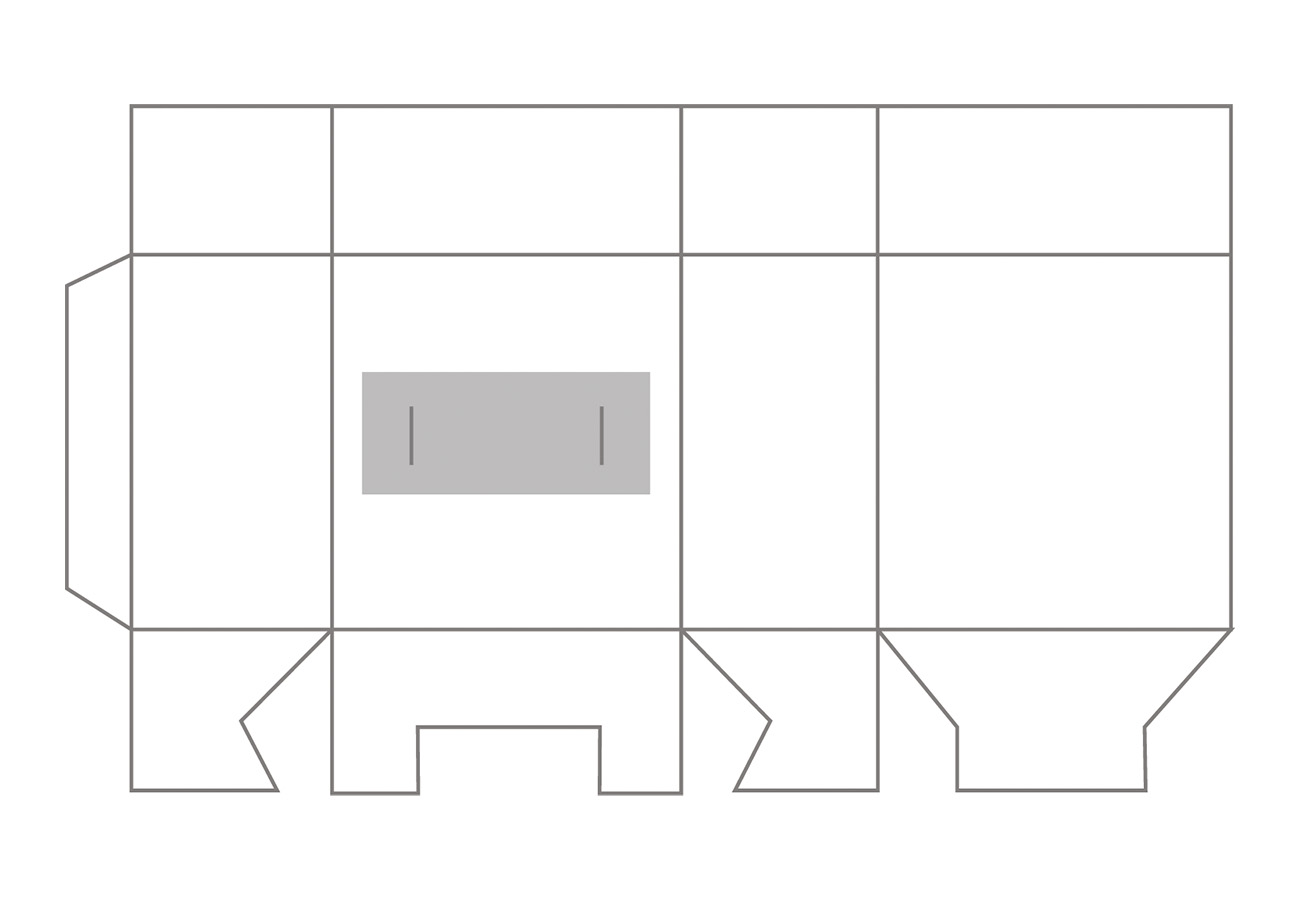

Gallery
