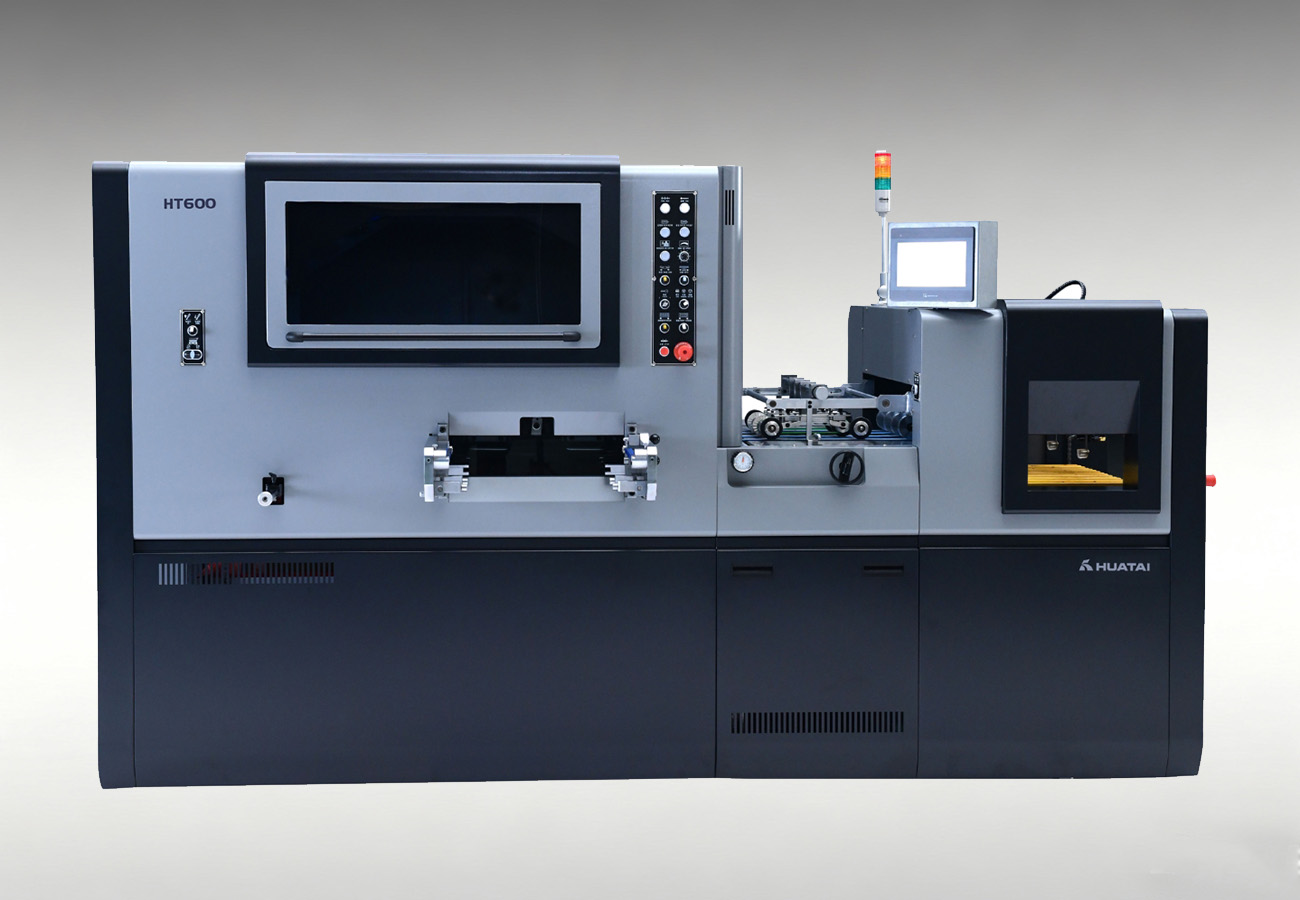

HT600 High Speed Die Cutter
High-speed die-cutting machine developed for B2 format digital and offset printing. It can process cards, cartons, ticket sets, labels, tags, stickers, and other products. It has the functions of die-cutting, indentation, embossing, embossing, braille embossing, bronzing, etc. Efficient, fast, and covers a small area.
Match for: Heidelberg VersafireXerox lGEN Ricoh 7900Heidelberg Speedmaster 52 and Ryobi 520 Kodak Nexpress HP Indigo 7K, 5900, etc
- Specification
| Max.Paper Size | 600X420mm |
| Min.Paper Size | 280X233mm |
| Max.Cutting Size | 590X410mm |
| Max.Cutting Speed | 10000s/h/6000s/h(vision) |
| Max.Pressure | 180T |
| Die-cutting Precision | ±0.075mm |
| Inside Chase Size | 600X430mm |
| Die Cutting Plate Size | 600X420mm |
| Height of Cutting Rules | 23.8mm |
| First Cutting Rule | 8~16mm |
| Min.Gripper Margin | 9mm |
| Max.Feeding Pile Height (incl.pallet) | 900mm |
| Max.Delivery Pile Height (incl.pallet) | 800mm |
| Thickness of Cardboard | 80g/㎡~1000g/㎡ |
| Thickness of Corrugated Paper | 0≤2mm |
| Total Power | 10kw/12kw(vision) |
| Weight | 5T/5.5T(vision) |
