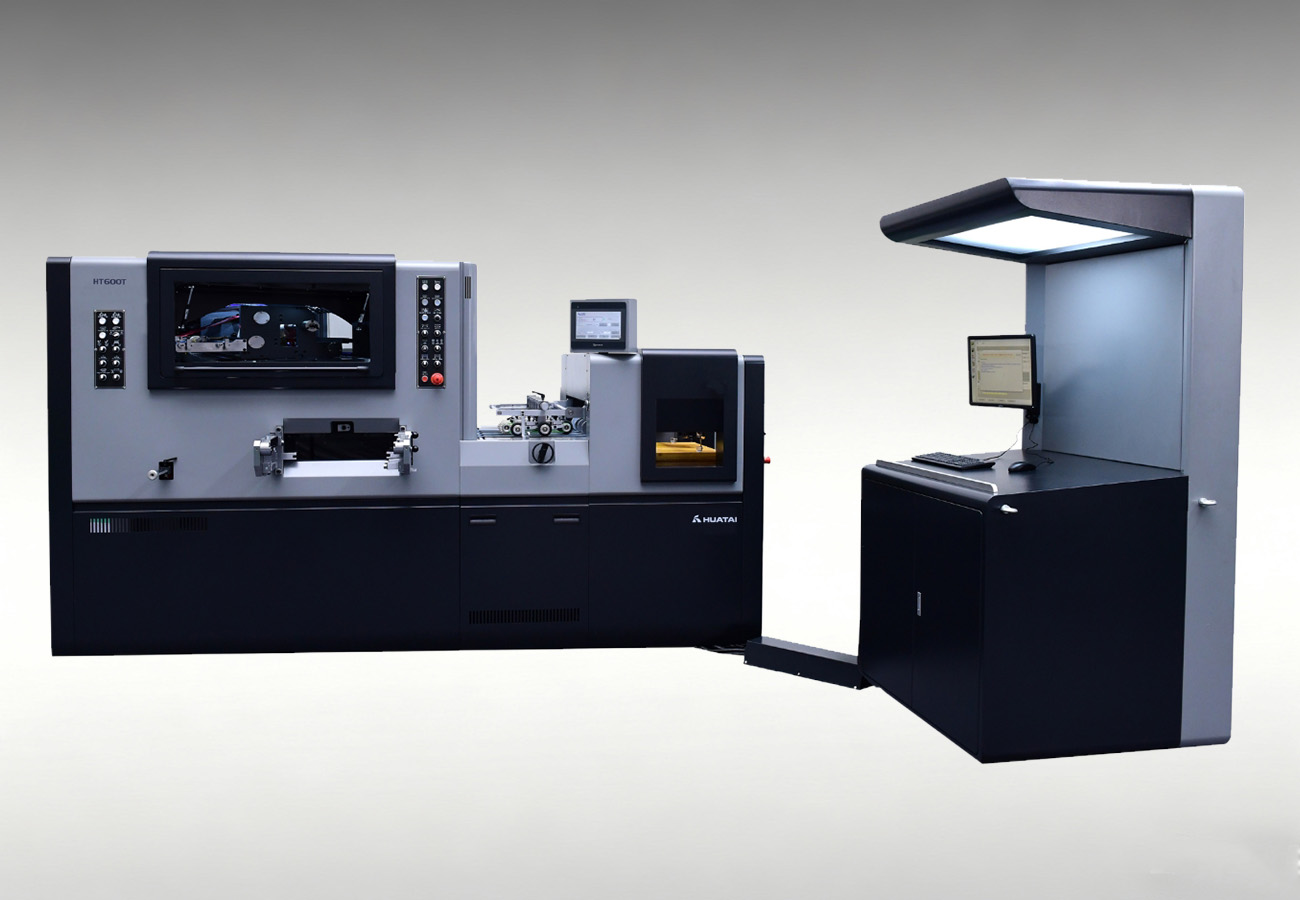

HT600T High Speed Foil Stamper
Professional die cutting and foil stamping machine with the world’s highest die cutting and foil stamping speed. Stable functions and easy and convenient operability will help you improve production efficiency and quality.
Match for: Heidelberg VersafireXerox lGEN Ricoh 7900Heidelberg Speedmaster 52 and Ryobi 520 Kodak Nexpress HP Indigo 7K, 5900, etc
Intelligent register vision system(Invention Patent) is option
- Specification
| Max.Paper Size | 600X420mm |
| Min.Paper Size | 280X233mm |
| Max.Cutting Size | 590X410mm |
| Max.Cutting Speed | 10000s/h |
| Max.Foil stamping speed | -/9000/-/9000s/h |
| Max.Cutting speed with vision system | -/-/6000/6000s/h |
| Max.Pressure | 180T |
| Die-cutting Precision | ±0.075mm |
| Inside Chase Size | 600X430mm |
| Die Cutting Plate Size | 600X420mm |
| Height of Cutting Rules | 23.8mm |
| First Cutting Rule | 8~16mm |
| Min.Gripper Margin | 9mm |
| Max.Feeding Pile Height (incl.pallet) | 900mm |
| Max.Delivery Pile Height (incl.pallet) | 800mm |
| Thickness of Cardboard | 80g/㎡~1000g/㎡ |
| Thickness of Corrugated Paper | 0≤2mm |
| Total Power | 27kw/29kw(vision) |
| Weight | 5T/7.5T(vision) |
