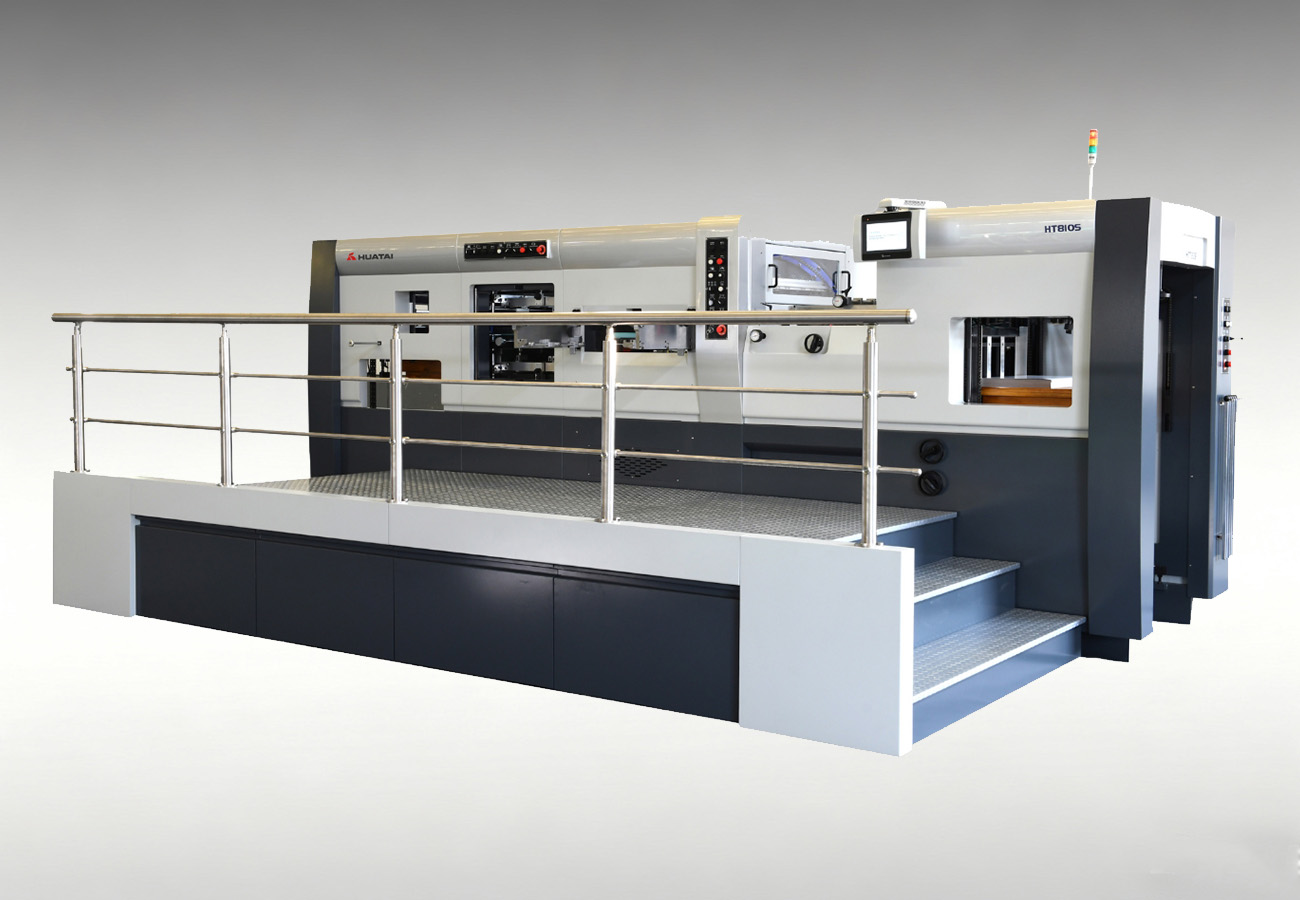

HT810S /HT760S Excellent Heavy-duty Die Cutting Machine
This is a high-performance equipment with better performance to meet customers’ requirements for higher product quality and production efficiency.
High-speed die-cutting machine developed for B2 format digital and offset printing.
It can process cards, cartons, ticket sets, labels, tags, stickers and other products.
It has the functions of die-cutting, indentation, embossing and braille embossing.
- Short changeover
- Highly intelligent
- Stable and high efficiency
- Specification
| Max.Paper Size | 810X610mm/760X610mm |
| Min.Paper Size | 320X260mm |
| Max.Cutting Size | 800X600mm/750X600mm |
| Max.Cutting Speed | 9000s/h |
| Max.Stripping Speed | 9000s/h(-)/9000s/h |
| Max. Pressure | 500T |
| Die-cutting Precision | ±0.075mm |
| Inside Chase Size | 815X620mm/765X620mm |
| Height of Cutting Rules | 23.8mm |
| First Cutting Rule | 12mm |
| Min.Gripper Margin | 7mm |
| Max.Feeding Pile Height (incl.pallet) | 1480mm |
| Max.Delivery Pile Height (incl.pallet) | 1360mm |
| Thickness of Cardboard | 80g/㎡~2000g/㎡ |
| Thickness of Corrugated Paper | ≤4mm |
| Weight | 13T(12T)/12.5T |
| Total Power | 18kw(17kw)/15kw |
