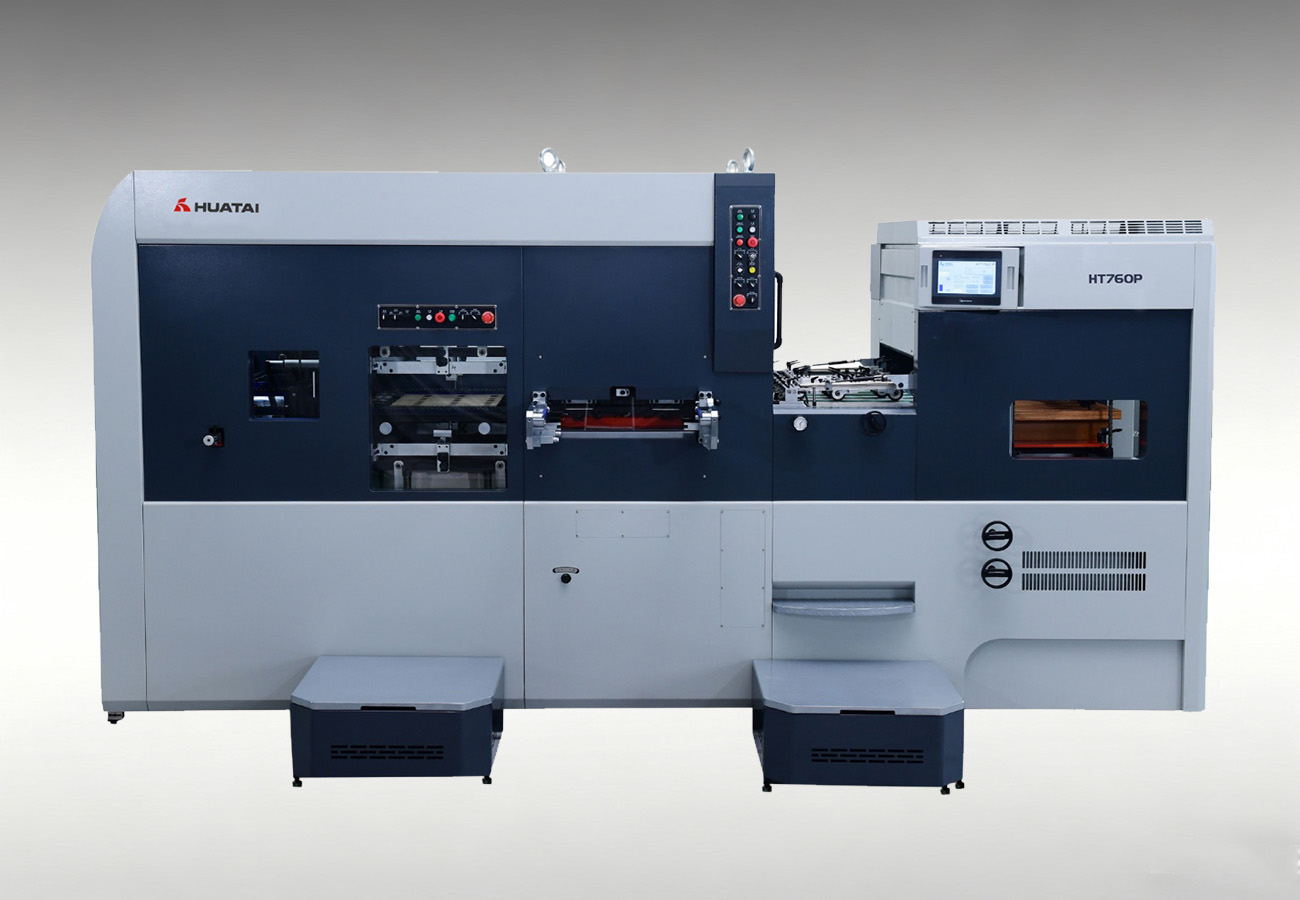

HT760P /HT760PC High Speed Die Cutting Machine With Stripping
Used for hangtags, labek carton box, hand bag die cutting, creasing and cold embossing with stripping unit.
Stripping frame can stay in any position and easy to install pins.
Equipped with non stop feeding and non stop delivery device.
Pneumatic lock on die cutting chase and air floating device on die cut plate.
German chains ensure accuracy of gripper bars.
Length of gripper chains can be adjusted.
Can strip holes more than 3mm in diameter.
- Smart
- Strip out holes and edges
- Wide applicability
- Match with B2
- Specification
| Max.Paper Size | 760X520mm |
| Min.Paper Size | 320X260mm |
| Max.Cutting Size | 750X510mm |
| Max.Cutting Speed | 9000s/h |
| Max.Stripping Speed | 9000s/h |
| Max.Pressure | 250T/300T |
| Die-cutting Precision | ±0.075mm |
| Inside Chase Size | 765X530mm |
| Height of Cutting Rules | 23.8mm |
| First Cutting Rule | 12mm |
| Min.Gripper Margin | 7mm |
| Max.Feeding Pile Height (incl.pallet) | 1280mm |
| Max.Delivery Pile Height (incl.pallet) | 1160mm |
| Thickness of Cardboard | 80g/㎡~2000g/㎡ |
| Thickness of Corrugated Paper | ≤4mm |
| Weight | 9T/11T |
| Total Power | 16kw |
| Main motor power | 7.5kw |
| Power supply | 3AC380V/PEN 50HZN18KVA |
